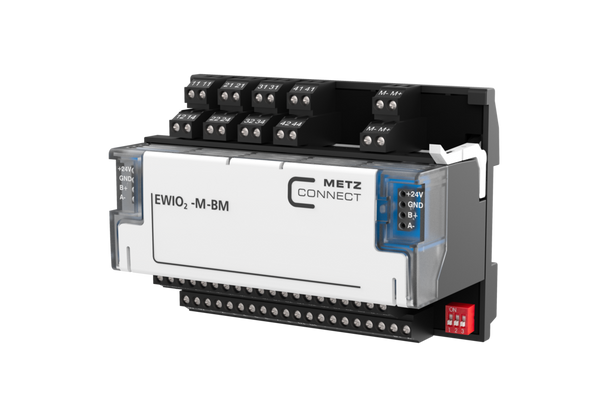

Metz Connect 110935. EWIO2-M-BM M-Bus / BACnet / Modbus

Das EWIO₂-M-BM is a powerful data logger for the energy consumption monitoring and energy monitoring in buildings, on machines, plants and systems. Two Ethernet ports with a Daisy Chain function are available for the chain furhter Data logger and connection to a LAN network. The EWIO₂-M-BM can be integrated into a Modbus TCP or BACnet/IP network to perform control tasks. The system is parameterised, configured and commissioned through a platform-independent web browser. The M-Bus and Modbus RTU interfaces enable to read different meters: e.g. electricity, water, gas and heat. Optionally, the measured values can either be sent from the data base (push) or read out (pull) via mail (SSL) or FTP (SFTP), from a BACnet or Modbus controller. Simple functions and control tasks in building or industrial automation can be created and visualized via the graphic programming interface "Node-RED" integrated in the web interface and the numerous digital and analog I/Os. An integrated µSD memory card expands the range of functions of the EWIO₂-M-BM for save settings, data and applications.
