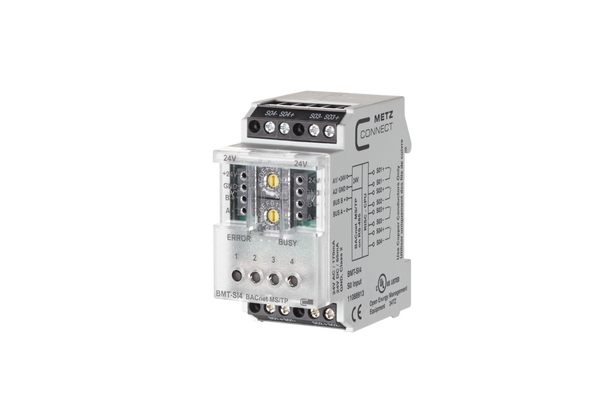

Metz Connect 11088913. BMT-SI4 BACnet MS/TP

No reviews yet Write a Review
$367.97
Metz Connect 11088913 BMT-SI4 BACnet MS/TP | American Cable Assemblies
Metz Connect 11088913. BMT-SI4 BACnet MS/TP
Metz Connect 11088913. BMT-SI4 BACnet MS/TP
Metz Connect 11088913. BMT-SI4 BACnet MS/TP
SKU:
MTZ11088913
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Digital input
Functions:
S0 impulse
Operating voltage:
24 V AC/DC
Connection type:
Screw type terminal blocks
Mounting style:
Standard rail TH35
RoHS:
compliant
EAN:
4250184160991
$367.97

Frequently Bought Together:

Metz Connect 11088913 BMT-SI4 BACnet MS/TP | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The BACnet MS/TP module with 4 S0 inputs according to DIN EN 62053-31 class A was developed for decentralized switching tasks. It is suitable, among other things, for counting S0 counter pulses. This allows very good integration of the module into an energy controlling system. In case of a power failure, the last counter readings are saved. The inputs can be scanned by means of standard objects via a BACnet client. When using the Accumulator Object, pulses up to 50 Hz can be counted, when using the PulseConverter object, pulses up to 500 Hz can be counted. Module address and bit rate are set with two rotary switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

  • Connection with screw type terminal blocks

Resources

BMT-SI4 BACnet MS/TP | 11088913View DataSheet
BMT-SI4 BACnet MS/TP | 11088913View Product Information

Specifications

General Data
Protocol BACnet MS/TP
Addressing range 00 to F9
Bus interface RS485 (two-wire bus)
Transmission rate 9600 to 115200 bit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 170 mA (AC) / 65 mA (DC)
Relative duty cycle 100 %
Inputs 4 x S0 input, class A
Input / acc. to standard DIN EN 62053-31
Display Green, red and yellow LED
Dimensions (W x H x D) 35 x 69.3 x 60 mm
Weight 83 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
