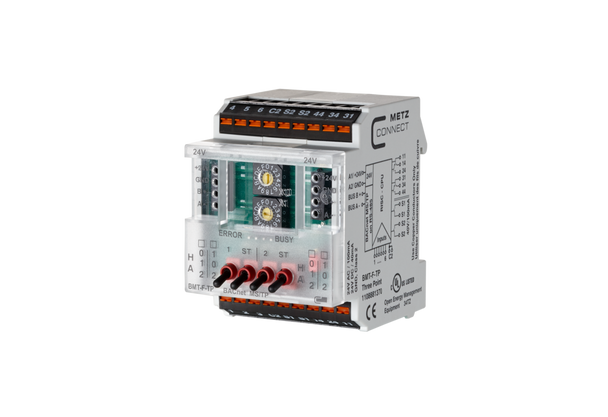

Metz Connect 1108881370. BMT-F-TP BACnet MS/TP

No reviews yet Write a Review
$0.00
Metz Connect 1108881370 BMT-F-TP BACnet MS/TP | American Cable Assemblies
Metz Connect 1108881370. BMT-F-TP BACnet MS/TP
Metz Connect 1108881370. BMT-F-TP BACnet MS/TP
Metz Connect 1108881370. BMT-F-TP BACnet MS/TP
SKU:
MTZ1108881370
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Mix I/O
Functions:
Relay output, two-stage
Operating voltage:
24 V AC/DC
Connection type:
Spring clamp terminal blocks
Mounting style:
Standard rail TH35
Manual control facility:
yes
RoHS:
compliant
EAN:
4251394620817

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

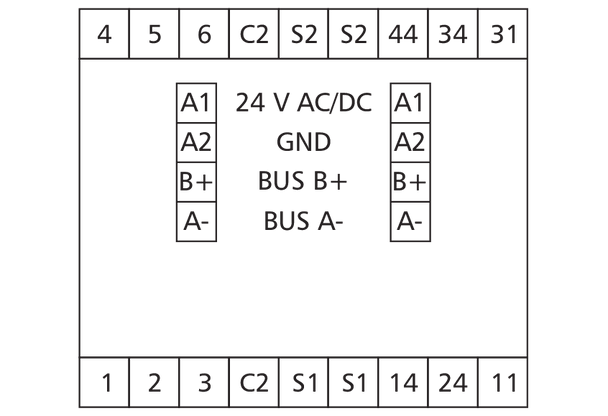

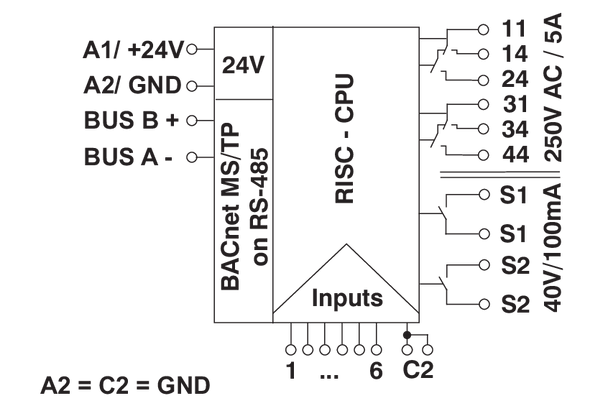

The BACnet MS/TP three-point module with 6 digital inputs, 2 two-level relay outputs and 2 digital outputs was developed for decentralized switching tasks. It is suitable for switching, for example, multi-level pumps and fans or louvers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client. The input terminals 1 to 6 are wired with the C2 terminals on two poles to potential-free switches or contacts. The module has a manual control for the outputs. The module address and the baud rate are set by means of two address switches on the front. Suitable for decentralized mounting in serial sub-distributor.

  • Connection with spring clamp terminal blocks (push-in)

Resources

BMT-F-TP BACnet MS/TP | 1108881370View DataSheet

Specifications

General Data
Protocol BACnet MS/TP
Addressing range 00 to F9
Bus interface RS485 (two-wire bus)
Transmission rate 9600 to 115200 bit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 100 mA (AC) / 40 mA (DC)
Relative duty cycle 100 %
Inputs 6 x digital contacts
Input / switching threshold 4.5 V DC
Outputs (relay) 2 x two-level
Output / switching voltage 250 V AC
Output / current 6 A / output
Outputs (digital) 2 NO (DPST-NO) (photoMOS)
Output / switching voltage 40 V AC/DC
Output / current 100 mA
Display Green, red and yellow LED
Dimensions (W x H x D) 50 x 69.3 x 60 mm
Weight 126 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
