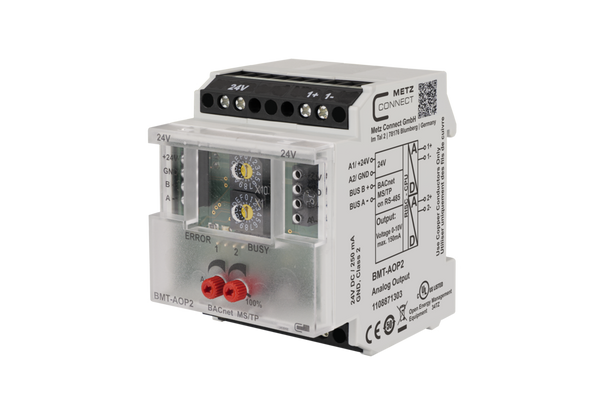

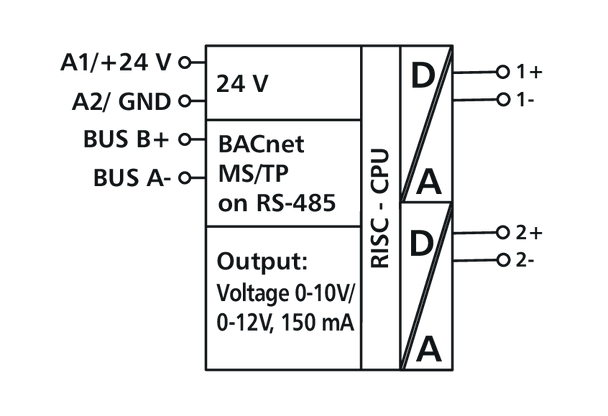

The BACnet MS/TP module with 2 analog voltage outputs was developed for decentralized switching tasks. It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions or electronic ballasts for lighting and other applications. The outputs can be output by means of standard objects via a BACnet client. Each output can be set for automatic or manual operation by means of 2 potentiometers at the front. In addition, the operating mode can be set via software (output voltage 0-10 V or 0-12 V). The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

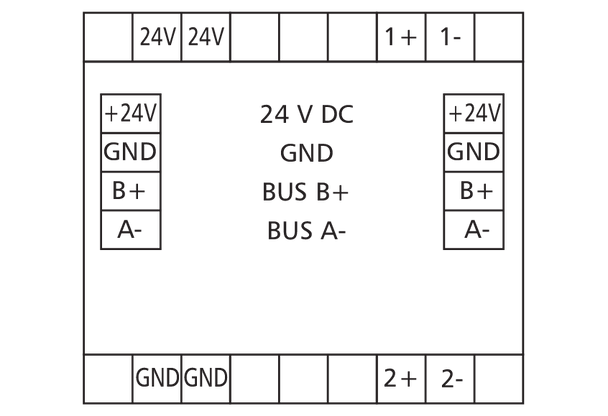

- Connection with screw type terminal blocks
Resources
Specifications
General Data | Protocol | BACnet MS/TP |
| Adressing range | 00 to F9 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 9600 to 115200 baud |
| Operating voltage | 24 V DC |
| Current consumption | max. 250 mA (DC) |
| Relative duty cycle | 1 |
| Outputs | 2 x analog, galvanically isolated |
| Output / voltage | 0 V to 10 V DC / 0 V to 12 V DC |
| Output / current | 150 mA bei 10 V DC / 12 V DC |
| Output / resolution | 0,3125 mv / digit |
| Display | Green, red LED |
| Dimensions (W + H + D) | 50 x 69.3 x 60 mm |
| Weight | 119 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP 20 |
