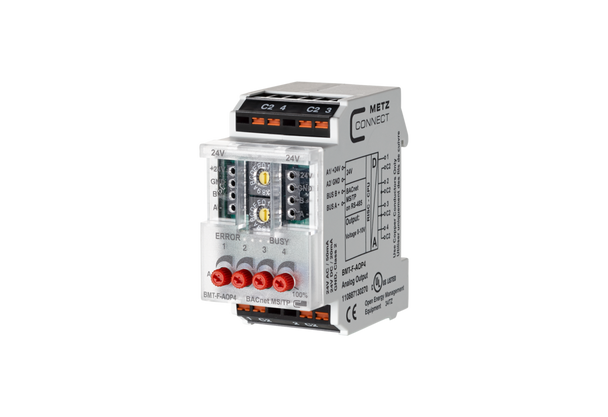

Metz Connect 110887130270. BMT-F-AOP4 BACnet MS/TP

No reviews yet Write a Review
$0.00
Metz Connect 110887130270 BMT-F-AOP4 BACnet MS/TP | American Cable Assemblies
Metz Connect 110887130270. BMT-F-AOP4 BACnet MS/TP
Metz Connect 110887130270. BMT-F-AOP4 BACnet MS/TP
Metz Connect 110887130270. BMT-F-AOP4 BACnet MS/TP
SKU:
MTZ110887130270
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Analog output
Functions:
Voltage output
Operating voltage:
24 V AC/DC
Connection type:
Spring clamp terminal blocks
Mounting style:
Standard rail TH35
Manual control facility:
yes
RoHS:
compliant
EAN:
4251394620664

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

The BACnet MS/TP module with 4 analog outputs was developed for decentralized switching tasks. It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions, etc. The outputs can be output by means of standard objects via a BACnet client. Each output can be set for automatic or manual operation by means of 4 potentiometers at the front. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

  • Connection with spring clamp terminal blocks (push-in)

Resources

BMT-F-AOP4 BACnet MS/TP | 110887130270View DataSheet

Specifications

General Data
Protocol BACnet MS/TP
Addressing range 00 to F9
Bus interface RS485 (two-wire bus)
Transmission rate 9600 to 115200 bit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 50 mA (AC) / 20 mA (DC)
Relative duty cycle 100 %
Outputs 4 x analog
Output / voltage 0 V to 10 V DC
Output / current 5 mA at 10 V DC
Output / resolution 0.3125 mV/digit
Display Green and red LED
Dimensions (W x H x D) 35 x 69.3 x 60 mm
Weight 72 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
