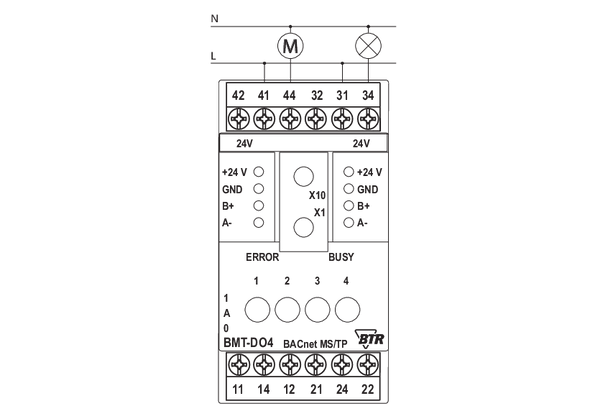

The BACnet MS/TP module with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, such as motors, contactors, lamps, louvers, etc. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The module is provided with a manual control for manually switching the relays. The outputs can be switched by means of standard objects via a BACnet client. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

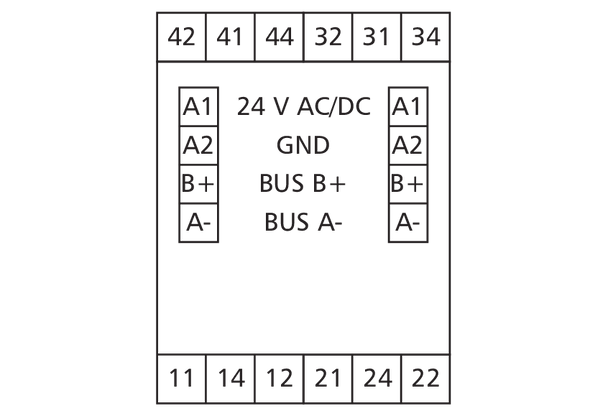

- Connection with screw type terminal blocks
Resources
Specifications
General Data | Protocol | BACnet MS/TP |
| Addressing range | 00 to F9 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 9600 to 115200 bit/s |
| Operating voltage | 24 V AC/DC +/- 10 % (SELV) |
| Current consumption | 200 mA (AC) / 70 mA (DC) |
| Relative duty cycle | 100 % |
| Output / contacts | 4 x changeover contacts (4PST) |
| Output / switching voltage | 250 V AC |
| Output / continuous current | 5 A / output |
| Output / switching frequency | 360 cycles/h |
| Display | Green, red and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 95 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
