Metz Connect 1108831326IP. BMT-DIO4/2-IP65 BACnet MS/TP

No reviews yet Write a Review
$355.07
Metz Connect 1108831326IP BMT-DIO4/2-IP65 BACnet MS/TP | American Cable Assemblies
Metz Connect 1108831326IP. BMT-DIO4/2-IP65 BACnet MS/TP
Metz Connect 1108831326IP. BMT-DIO4/2-IP65 BACnet MS/TP
Metz Connect 1108831326IP. BMT-DIO4/2-IP65 BACnet MS/TP
Metz Connect 1108831326IP. BMT-DIO4/2-IP65 BACnet MS/TP
SKU:
MTZ1108831326IP
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Mix I/O
Functions:
Relay output
Operating voltage:
24 V AC/DC
Connection type:
Spring clamp terminal blocks
Mounting style:
Housing IP65
Manual control facility:
yes
RoHS:
compliant
EAN:
4250184138730
$355.07

Frequently Bought Together:

Metz Connect 1108831326IP BMT-DIO4/2-IP65 BACnet MS/TP | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

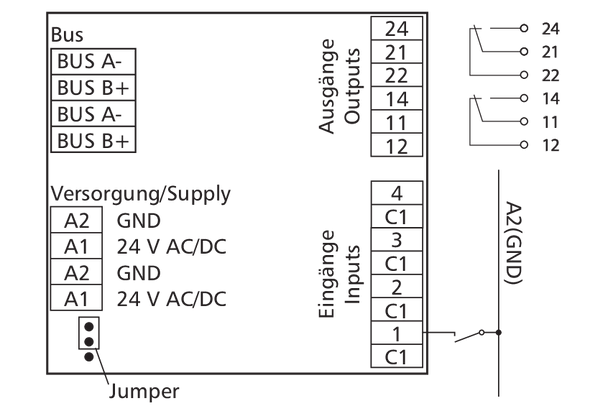

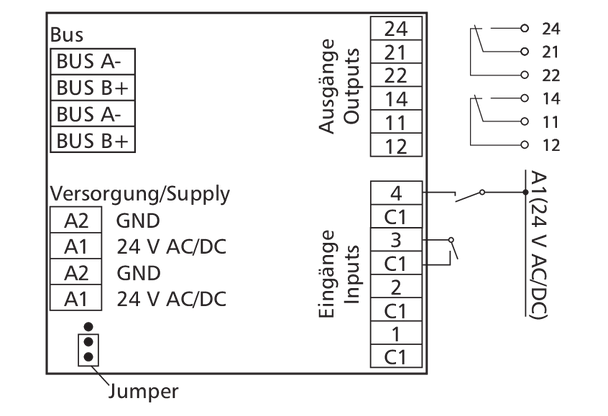

The BACnet MS/TP module in IP65 housing with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks. It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers. It can also be used to control 2 motorized fire dampers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs can be used as contact or voltage inputs. The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client. The module address and the baud rate are set by means of two address switches.

Resources

BMT-DIO4/2-IP65 BACnet MS/TP | 1108831326IPView DataSheet

Specifications

General Data
Protocol BACnet MS/TP
Addressing range 00 to F9
Bus interface RS485 (two-wire bus)
Transmission rate 9600 to 115200 bit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 200 mA (AC) / 75 mA (DC)
Relative duty cycle 100 %
Inputs 4 x digital
Input / voltage 0 - 24 V AC/DC
Input / high signal more than 7 V AC/DC
Output / contacts 2 changeover contacts (DPDT)
Output / switching voltage 250 V AC
Output / continuous current (UL) 8 A / output
Output / continuous current (VDE) 10 A / output
Output / switch-on current 80 A (less than 20 ms)
Display Green, red and yellow LED
Dimensions (W x H x D) 160 x 40.7 x 120 mm
Weight 350 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
