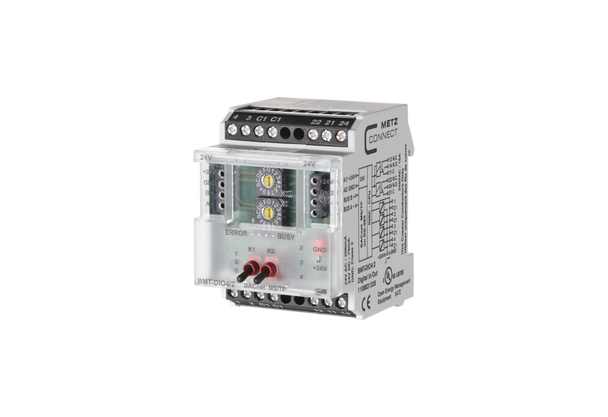

Metz Connect 1108831326. BMT-DIO4/2 BACnet MS/TP

No reviews yet Write a Review
$324.03
Metz Connect 1108831326 BMT-DIO4/2 BACnet MS/TP | American Cable Assemblies
Metz Connect 1108831326. BMT-DIO4/2 BACnet MS/TP
Metz Connect 1108831326. BMT-DIO4/2 BACnet MS/TP
Metz Connect 1108831326. BMT-DIO4/2 BACnet MS/TP
Metz Connect 1108831326. BMT-DIO4/2 BACnet MS/TP
SKU:
MTZ1108831326
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Mix I/O
Functions:
Relay output
Operating voltage:
24 V AC/DC
Connection type:
Screw type terminal blocks
Mounting style:
Standard rail TH35
Manual control facility:
yes
RoHS:
compliant
EAN:
4250184138723
$324.03

Frequently Bought Together:

Metz Connect 1108831326 BMT-DIO4/2 BACnet MS/TP | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The BACnet MS/TP module with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks. It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers. It can also be used to control 2 motorized fire dampers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs can be used as contact or voltage inputs. The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client. The module address and the baud rate are set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

  • Connection with screw type terminal blocks

Resources

BMT-DIO4/2 BACnet MS/TP | 1108831326View DataSheet

Specifications

General Data
Protocol BACnet MS/TP
Addressing range 00 to F9
Bus interface RS485 (two-wire bus)
Transmission rate 9600 to 115200 bit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 200 mA (AC) / 75 mA (DC)
Relative duty cycle 100 %
Inputs 4 x digital

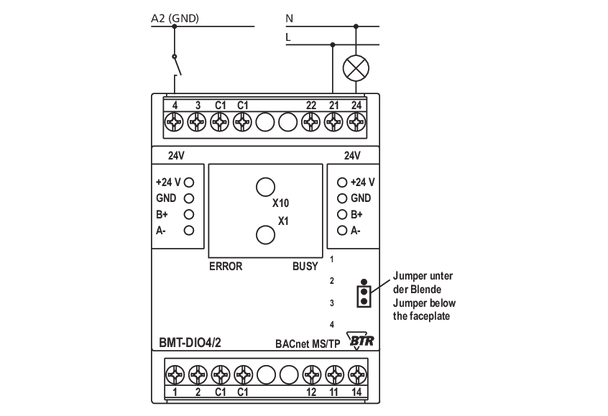

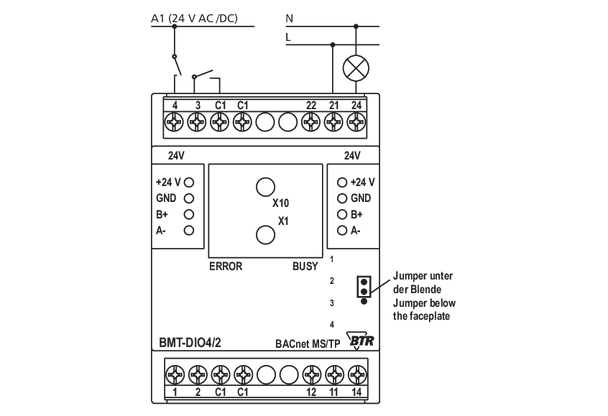

Input / voltage 30 V AC/DC
Input / high signal more than 7 V AC/DC
Output / contacts 2 x changeover contacts (DPDT)
Output / switching voltage 250 V AC
Output / continuous current 16 A / output
Output / switch-on current 80 A (less than 20 ms)
Display Green, red and yellow LED
Dimensions (W x H x D) 50 x 69.3 x 60 mm
Weight 126 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
