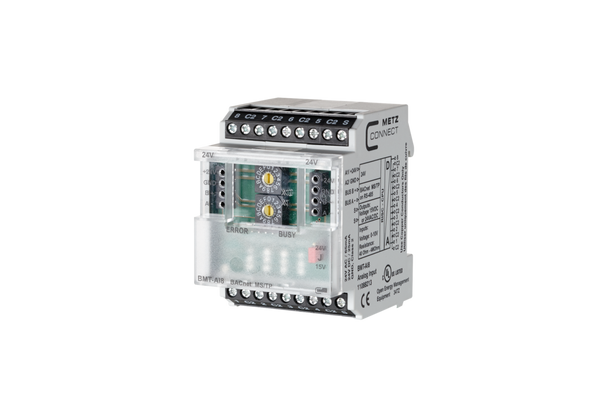

The BACnet MS/TP module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks. It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc. The inputs can be configured universally by means of standard objects via a BACnet client. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with screw type terminal blocks
Resources
Specifications
General Data | Protocol | BACnet MS/TP |
| Addressing range | 00 to F9 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 9600 to 115200 bit/s |
| Operating voltage | 24 V AC/DC +/- 10 % (SELV) |
| Current consumption | 65 mA (AC) / 25 mA (DC) |
| Relative duty cycle | 100 % |
| Inputs | 8 x individually configurable |
| Input / resistance | 40 Ohm to 4 MOhm |
| Input / voltage | 0 V to 10 V DC |
| Input / resolution | 10 mV (0 to 100 %) |
| Input / error voltage input | 10 mV |
| Input / error resistance input < 12 kOhm | 0.1 % |
| Input / error resistance input >= 12 kOhm | 1 % |
| Display | Green, red and yellow LED |
| Dimensions (W x H x D) | 50 x 69.3 x 60 mm |
| Weight | 104 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
