BMT-(F)-RTR is a compact Router and enables bidirectional data exchange between BACnet/IP and BACnet MS/TP fieldbus devices. The BMT-(F)-RTR can be connected to METZ CONNECT BACnet MS/TP devices via two 4-pole terminals on the front of the device and a jumper plug. An integrated web server is used for parameter settings, management and monitoring of the two interfaces (Ethernet / RS485). The web interface is also used to update the firmware. The BMT-(F)-RTR is suitable for decentralised mounting in electrical sub-distribution boards or in control cabinets on TH35 mounting rails in accordance with IEC 60715.

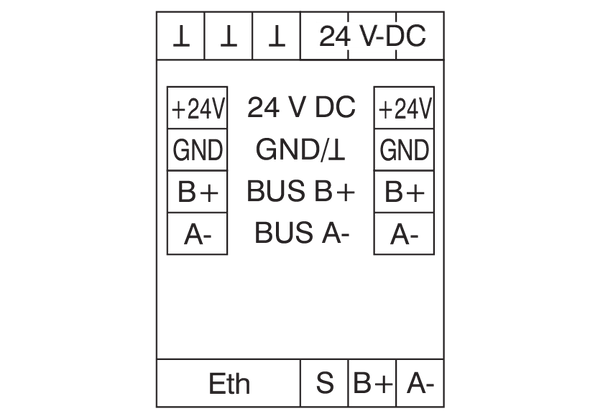

- Connection with screw type terminal blocks
- Access to 32 devices on the BACnet MS/TP bus

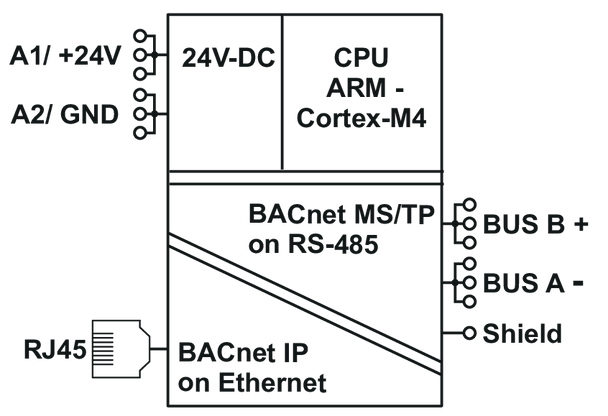

- Bidirectional exchange of data between BACnet/IP and BACnet MS/TP devices
- Protocol: BACnet MS/TP, BACnet/IP, BACnet Ethernet, HTTP 1.0
- Integrated web server
- Intuitive and software-independent TCP configuration via web interface
- Recording and analysis of IP and RS485 communication
- Simple device search of METZ CONNECT BACnet MS/TP devices on the RS485 bus
- Fast connection of METZ CONNECT BACnet MS/TP devices via proven jumper plug technology
Resources
Specifications
General Data | Ethernet interface | |
| Network connection | 1 x Ethernet port (RJ-45 IEC 60603-7-51 (2010)) |
| Speed | 10/100 Mbits with auto-negotiation |
| Protocol | BACnet IP, BACnet Ethernet, HTTP 1.0 |
| RS485 interface | |
| Protocol | BACnet MS/TP |
| Transmission rate | 9600 Bit/s to 115200 Bit/s |
| Bus termination resistor | 120 Ohm switchable |
| Galvanic isolation | 1,5 kV |
| Supply | |
| Operating voltage | 24 V DC +/- 10 % (SELV) |
| Power consumption (max.) | 50 mA |
| Power loss (max.) | 1.3 W |
| Indicator | |
| Operation "RDY" | green LED |
| LAN connection "LINK 10/100" | green LED (100 Mbit), yellow LED (10 Mbit) |
| RS485 bus "TX" / "RX" | green LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 64 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
