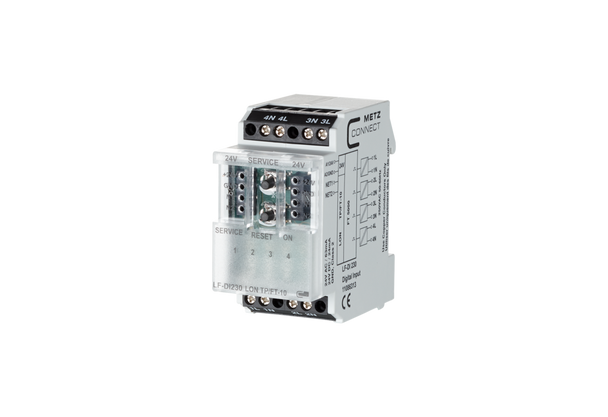

Metz Connect 11086313. LF-DI230 LON

No reviews yet Write a Review
$405.48
Metz Connect 11086313 LF-DI230 LON | American Cable Assemblies
Metz Connect 11086313. LF-DI230 LON
Metz Connect 11086313. LF-DI230 LON
Metz Connect 11086313. LF-DI230 LON
SKU:
MTZ11086313
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Digital input
Operating voltage:
24 V AC/DC
Connection type:
Screw type terminal blocks
Mounting style:
Standard rail TH35
RoHS:
compliant
EAN:
4250184146988
$405.48

Frequently Bought Together:

Metz Connect 11086313 LF-DI230 LON | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The LON module with 4 digital inputs was developed for decentralized switching tasks. It is suitable for detecting 230 V AC switch states, for example, switches or buttons for light control. The input terminals 1L to 4L are wired with 1N to 4N terminals to 230 V AC via switches or contacts. The inputs can be integrated individually or simultaneously by SNVT network variables. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

  • Connection with screw type terminal blocks

Resources

LF-DI230 LON | 11086313View DataSheet

Specifications

General Data
Protocol TP/FT-10, free topology
Neuron FT5000
Transmission rate 78 KBit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 63 mA (AC) / 24 mA (DC)
Relative duty cycle 100 %
Recovery time 550 ms
Inputs 4 x digital
Input / input voltage 230 V AC/DC
Display Green and yellow LED
Dimensions (W x H x D) 35 x 69.3 x 60 mm
Weight 72 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
