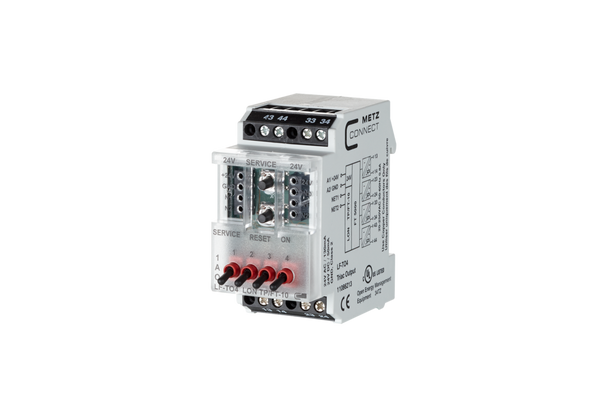

The LON module with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, such as relays, contactors, HLK valves, etc. The 4 triacs can be controlled individually in a LON installation by means of standard network variables. The module has a manual control activated only in configured mode. In addition, an adjustable pulse/pause function is integrated. Suitable for decentralized mounting in serial sub-distributor.

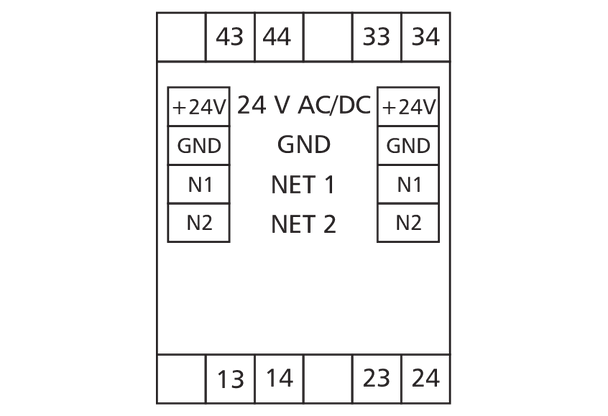

- Connection with screw type terminal blocks
Resources
Specifications
General Data | Protocol | TP/FT-10, free topology |
| Neuron | FT5000 |
| Transmission rate | 78 KBit/s |
| Operating voltage | 24 V AC/DC +/- 10 % (SELV) |
| Current consumption | 63 mA (AC) / 24 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Outputs | 4 x digital outputs (triac) |
| Output / switching voltage | 24 V to 250 V AC |
| Output / continuous current | 0.5 A / output |
| Output / total current | 2.4 A / all outputs |
| Display | Green and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 104 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
