Metz Connect

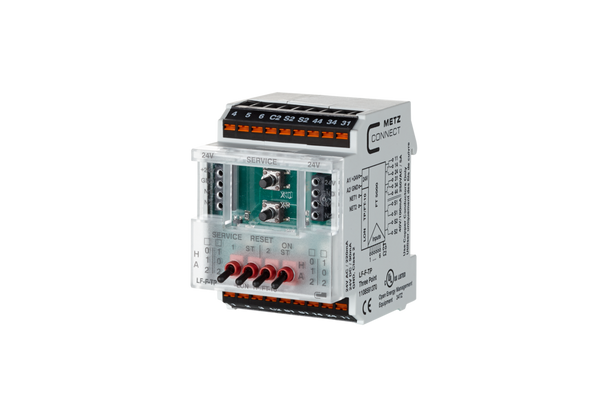

Metz Connect 1108591370. LF-F-TP LON

No reviews yet Write a Review
$0.00
Metz Connect 1108591370 LF-F-TP LON | American Cable Assemblies
Metz Connect 1108591370. LF-F-TP LON
Metz Connect 1108591370. LF-F-TP LON
Metz Connect 1108591370. LF-F-TP LON
SKU:
MTZ1108591370
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Mix I/O
Functions:
Relay output, two-stage
Operating voltage:
24 V AC/DC
Connection type:
Spring clamp terminal blocks
Mounting style:
Standard rail TH35
Manual control facility:
yes
RoHS:
compliant
EAN:
4251394620879

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

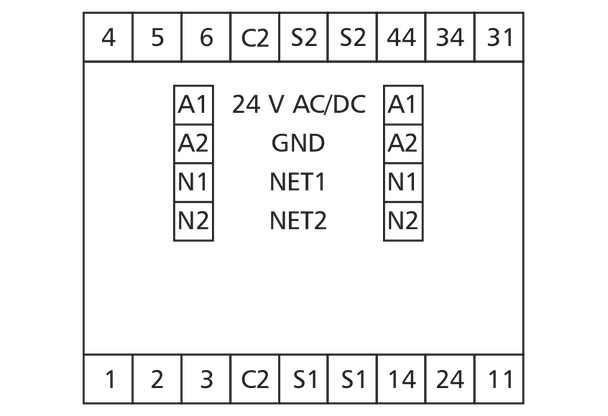

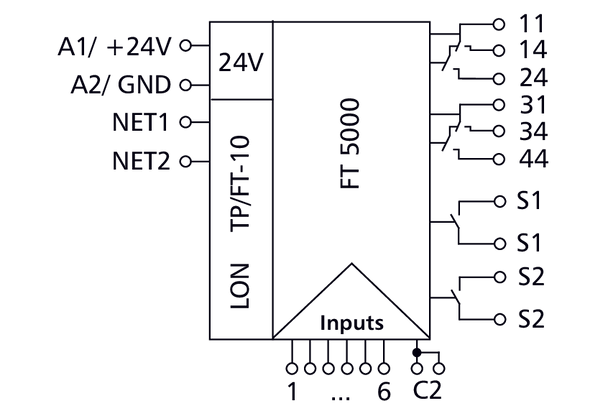

The LON three-point module with 6 digital inputs, 2 two-level relay outputs and 2 digital outputs was developed for decentralized switching tasks. It is suitable for switching, for example, multi-level pumps, fans, burners or similar. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs and outputs are scanned and activated by SNVT network variables. The input terminals 1 to 6 are wired with the C2 terminals on two poles to potential-free switches or contacts. The module has a manual control for the outputs, which is activated only in configured mode. Suitable for decentralized mounting in serial sub-distributor.

  • Connection with spring clamp terminal blocks (push-in)

Resources

LF-F-TP LON | 1108591370View DataSheet

Specifications

General Data
Protocol TP/FT-10, free topology
Neuron FT5000
Transmission rate 78 KBit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 220 mA (AC) / 90 mA (DC)
Relative duty cycle 100 %
Recovery time 550 ms
Inputs 6 x digital contacts
Input / switching threshold 4.5 V DC
Outputs (relays) 2 x two-level
Output / switching voltage 250 V AC
Output / current 6 A / output
Outputs (digital) 2 NO (DPST-NO) (photoMOS)
Output / switching voltage 40 V AC/DC
Output / current 100 mA
Operation and bus display Green and yellow LED
Dimensions (W x H x D) 50 x 69.3 x 60 mm
Weight 126 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
