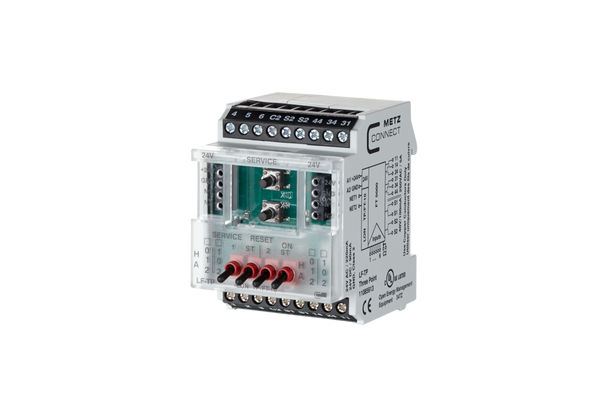

The LON three-point module with 6 digital inputs, 2 two-level relay outputs and 2 digital outputs was developed for decentralized switching tasks. It is suitable for switching, for example, multi-level pumps, fans, burners or similar. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs and outputs are scanned and activated by SNVT network variables. The input terminals 1 to 6 are wired with the C2 terminals on two poles to potential-free switches or contacts. The module has a manual control for the outputs, which is activated only in configured mode. Suitable for decentralized mounting in serial sub-distributor.
- Connection with screw type terminal blocks
Resources
Specifications
General Data | Protocol | TP/FT-10, free topology |
| Neuron | FT5000 |
| Transmission rate | 78 KBit/s |
| Operating voltage | 24 V AC/DC +/- 10 % (SELV) |
| Current consumption | 220 mA (AC) / 90 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Inputs | 6 x digital contacts |
| Input / switching threshold | 4.5 V DC |
| Outputs (relays) | 2 x two-level |
| Output / switching voltage | 250 V AC |
| Output / current | 6 A / output |
| Outputs (digital) | 2 NO (DPST-NO) (photoMOS) |
| Output / switching voltage | 40 V AC/DC |
| Output / current | 100 mA |
| Operation and bus display | Green and yellow LED |
| Dimensions (W x H x D) | 50 x 69.3 x 60 mm |
| Weight | 126 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
