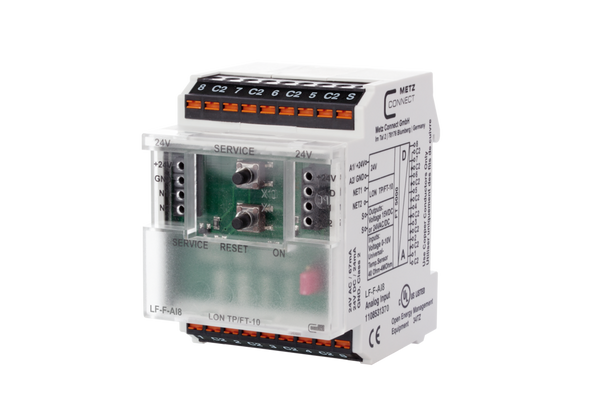

The LON module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks. It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc. The inputs can be scanned simultaneously by SNVT network variables. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with spring clamp terminal blocks (push-in)
Resources
Specifications
General Data | Protocol | TP/FT-10, free topology |
| Neuron | FT5000 |
| Transmission rate | 78 KBit/s |
| Operating voltage | 24 V AC/DC +/- 10 % (SELV) |
| Current consumption | 67 mA (AC) / 24 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Inputs | 8 x individually configurable |
| Input / resistance | 40 Ohm to 4 MOhm |
| Input / voltage | 0 V to 10 V DC |
| Input / resolution | 10 mV (0 to 100 %) |
| Input / error voltage input | 10 mV |
| Input / error resistance input < 12 kOhm | 0.1 % |
| Input / error resistance input >= 12 kOhm | 1 % |
| Display | Green and yellow LED |
| Dimensions (W x H x D) | 50 x 69.3 x 60 mm |
| Weight | 126 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
