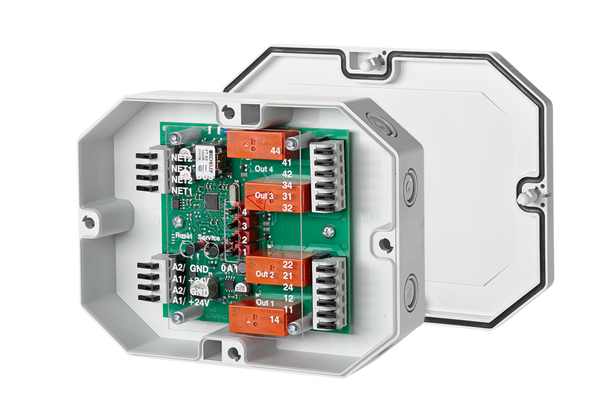

The LON module in an IP65 housing with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, such as motors, contactors, lamps, louvers, etc. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The outputs can be actuated by SNVT network variables. The module has a manual control activated only in configured mode. In addition, an adjustable wipe function is integrated.
Resources
Specifications
General Data | Protocol | TP/FT-10, free topology |
| Neuron | FT5000 |
| Transmission rate | 78 KBit/s |
| Operating voltage | 24 V AC/DC +/- 10% (SELV) |
| Current consumption | 205 mA (AC) / 67 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |

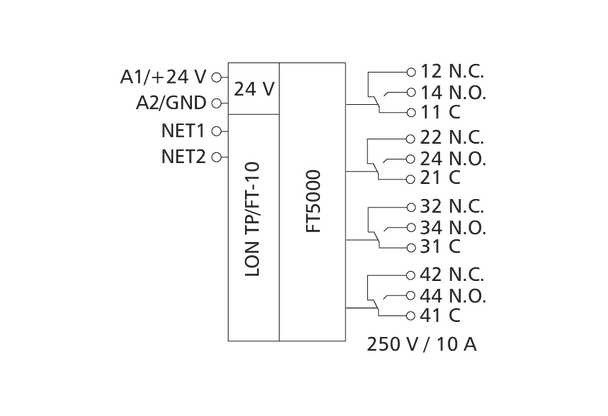

| Outputs | 4 changeover contacts (4PST) |
| Output / switching voltage | max. 250 V AC |
| Output / switch-on, switch-off current | 80 A, 20 ms |
| Output / continuous current | 10 A / output |
| Output / total current | max. 25 A / all outputs |
| Output / switching frequency | 360 cycles/h |
| Display | Green and yellow LED |
| Dimensions (W x H x D) | 160 x 40.7 x 120 mm |
| Weight | 368 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP65 / IP20 |
