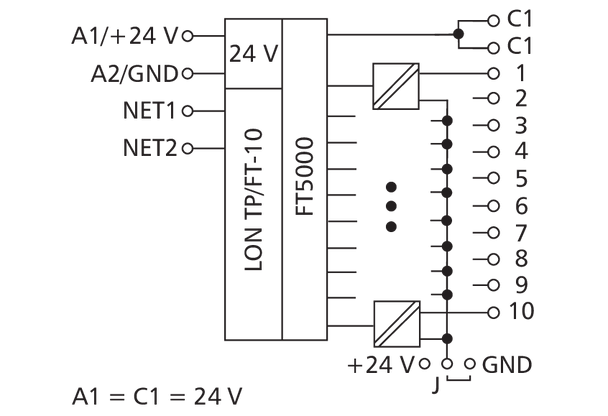

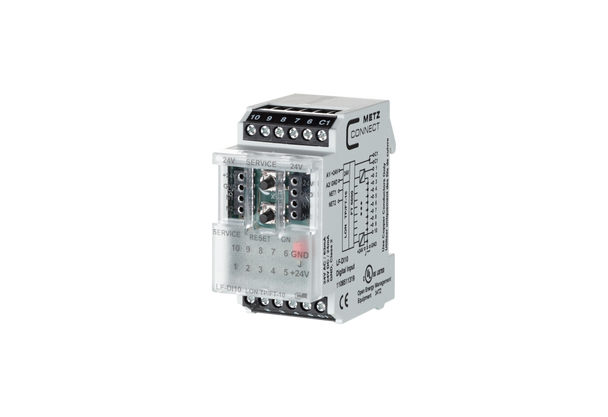

The LON module with 10 digital inputs was developed for decentralized switching tasks. It is suitable for detecting potential-free switch states, for example electrical limit switches on vent valves or auxiliary contacts of power contactors. The inputs can be used as contact or voltage inputs and scanned individually or simultaneously by SNVT network variables. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

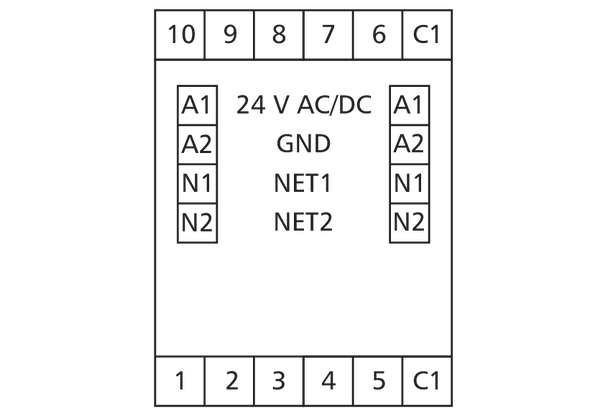

- Connection with screw type terminal blocks
Resources
Specifications
General Data | Protocol | TP/FT-10, free topology |
| Neuron | FT5000 |
| Transmission rate | 78 KBit/s |
| Operating voltage | 24 V AC/DC +/- 10 % (SELV) |
| Current consumption | 63 mA (AC) / 21 mA (DC) |
| Relative duty cycle | 100 % |
| Recovery time | 550 ms |
| Inputs | 10 x contact or voltage |
| Input / voltage | 30 V AC/DC |
| Input / high signal | more than 8 V AC/DC |
| Display | Green and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 72 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
