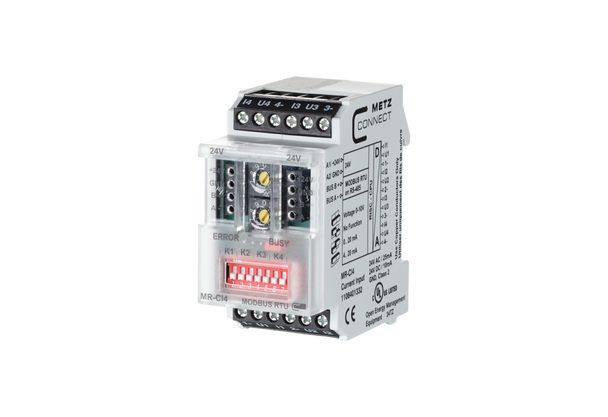

Metz Connect 1108401332. MR-CI4 Modbus RTU

No reviews yet Write a Review
$353.11
Metz Connect 1108401332 MR-CI4 Modbus RTU | American Cable Assemblies
Metz Connect 1108401332. MR-CI4 Modbus RTU
Metz Connect 1108401332. MR-CI4 Modbus RTU
Metz Connect 1108401332. MR-CI4 Modbus RTU
Metz Connect 1108401332. MR-CI4 Modbus RTU
SKU:
MTZ1108401332
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Analog input
Functions:
Voltage input, current input
Operating voltage:
24 V AC/DC

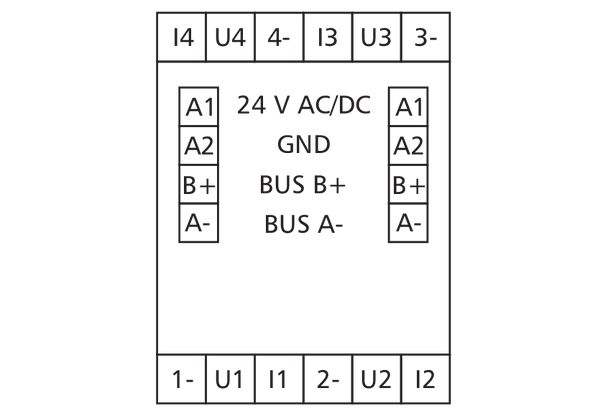

Connection type:
Screw type terminal blocks
Mounting style:
Standard rail TH35
RoHS:
compliant
EAN:
4250184165699
$353.11

Frequently Bought Together:

Metz Connect 1108401332 MR-CI4 Modbus RTU | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

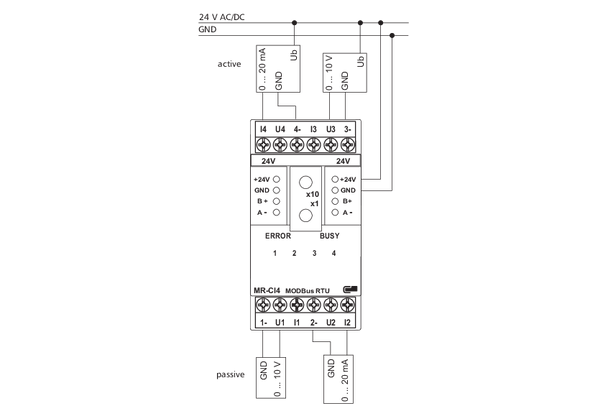

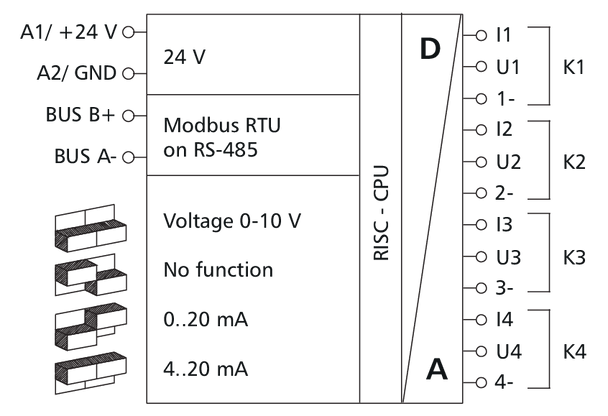

The Modbus module with 4 analog inputs was developed for decentralized switching tasks. It is suitable for detecting currents and voltages of, for example, active temperature sensors, electrical vent and mixing valves, valve positions, etc. Each input can be set as current or voltage input by DIP switches on the front. The inputs can be scanned with standard registers via a Modbus master. The module address, the baud rate and the parity are set with 2 rotary switches on the front or by software. Suitable for decentralized mounting on TH35 rails according to IEC 60715 in electrical distribution cabinets.

  • Connection with screw type terminal blocks

Resources

MR-CI4 Modbus RTU | 1108401332View DataSheet

Specifications

General Data
Protocol Modbus RTU
Address range 00 to 99
Bus interface RS485 (two-wire bus)
Transmission rate 1200 to 115200 bit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 25 mA (AC) / 10 mA (DC)
Relative duty cycle 100 %
Inputs 4 x analog
Input / voltage (U1-U4) 0 V to 10 V DC
Input / resolution 1 mV (0 to 100 %)
Input / error 10 mV
Input / current (I1-I4) 0 (4) to 20 mA DC
Input / resolution 2 µA
Input / error 20 µA
Display Green, red LED
Dimensions (W x H x D) 35 x 69.3 x 60 mm
Weight 95 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
