Sold Out
Metz Connect

Metz Connect 11083613210170. MR-F-DOA4 Modbus RTU

No reviews yet Write a Review
$0.00
Metz Connect 11083613210170 MR-F-DOA4 Modbus RTU | American Cable Assemblies
Metz Connect 11083613210170. MR-F-DOA4 Modbus RTU
Metz Connect 11083613210170. MR-F-DOA4 Modbus RTU
Metz Connect 11083613210170. MR-F-DOA4 Modbus RTU
SKU:
MTZ11083613210170
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Digital output
Functions:
Relay output
Operating voltage:
24 V AC/DC
Connection type:
Spring clamp terminal blocks
Mounting style:
Standard rail TH35
RoHS:
compliant
EAN:
4251394620763

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

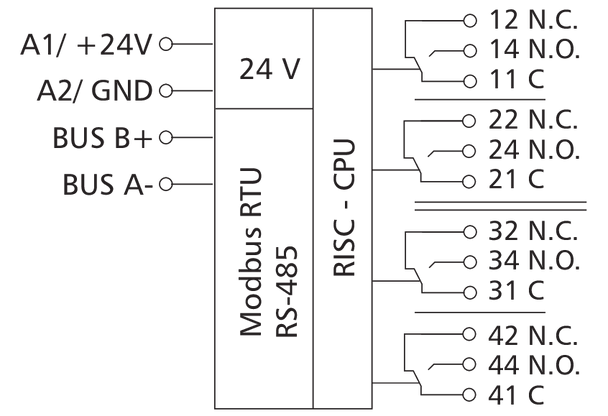

The Modbus module with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, such as motors, contactors, lamps, louvers, etc. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The outputs can be switched by means of standard registers via a Modbus master. Module address, bit rate and parity are set with 2 rotary switches on the front or by software. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

  • Connection with spring clamp terminal blocks (push-in)

Resources

MR-F-DOA4 Modbus RTU | 11083613210170View DataSheet

Specifications

General Data
Protocol Modbus RTU
Address range 00 to 99
Bus interface RS485 (two-wire bus)
Transmission rate 1200 to 115200 bit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 200 mA (AC) / 70 mA (DC)
Relative duty cycle 100 %
Output / contacts 4 changeover contacts (4PST)
Output / switching voltage 250 V AC
Output / continuous current 5 A / output
Output / switching frequency 360 cycles/h
Display Green, red and yellow LED
Dimensions (W x H x D) 35 x 69.3 x 60 mm
Weight 95 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
