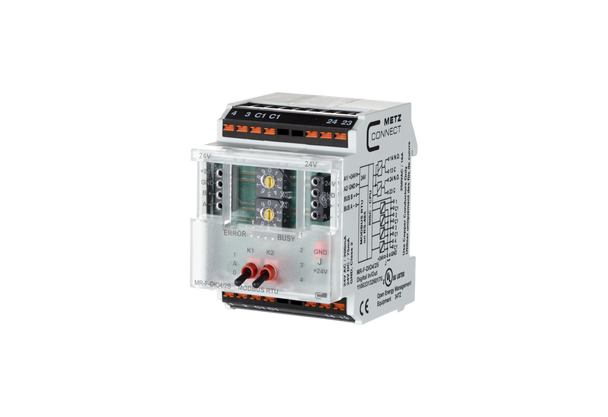

Metz Connect 11083313260170. MR-F-DIO4/2S Modbus RTU

No reviews yet Write a Review
$0.00
Metz Connect 11083313260170 MR-F-DIO4/2S Modbus RTU | American Cable Assemblies
Metz Connect 11083313260170. MR-F-DIO4/2S Modbus RTU
Metz Connect 11083313260170. MR-F-DIO4/2S Modbus RTU
Metz Connect 11083313260170. MR-F-DIO4/2S Modbus RTU
SKU:
MTZ11083313260170
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
I/O type:
Mix I/O
Functions:
Relay output
Operating voltage:
24 V AC/DC
Connection type:
Spring clamp terminal blocks
Mounting style:
Standard rail TH35
Manual control facility:
yes
RoHS:
compliant
EAN:
4251394610115

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

The Modbus module with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks. It is suitable for accommodating, for example, light switches and window contacts in a room, switching 2 light strips or controlling louvers. It can also be used to control 2 motorized fire dampers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs can be used as contact or voltage inputs. The inputs and outputs can be switched and scanned by means of standard registers via a Modbus master. Module address, bit rate and parity are set with 2 rotary switches on the front or by software. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

  • Connection with spring clamp terminal blocks (push-in)

Resources

MR-F-DIO4/2S Modbus RTU | 11083313260170View DataSheet

Specifications

General Data
Protocol Modbus RTU
Address range 00 to 99
Bus interface RS485 (two-wire bus)
Transmission rate 1200 to 115200 bit/s
Operating voltage 24 V AC/DC +/- 10 % (SELV)
Current consumption 200 mA (AC) / 75 mA (DC)
Relative duty cycle 100 %
Inputs 4 x digital
Input / voltage 30 V AC/DC
Input / high signal more than 7 V AC/DC
Output / contacts 2 NO contacts (DPST-NO)
Output / switching voltage 250 V AC
Output / continuous current 16 A / relay
Output / switch-on current 160 A (less than 20 ms)
Display Green, red and yellow LED
Dimensions (W x H x D) 50 x 69.3 x 60 mm
Weight 126 g
Operating temperature range -5 °C to 55 °C
Storage temperature range -20 °C to 70 °C
Ingress protection for housing / terminal blocks IP40 / IP20
