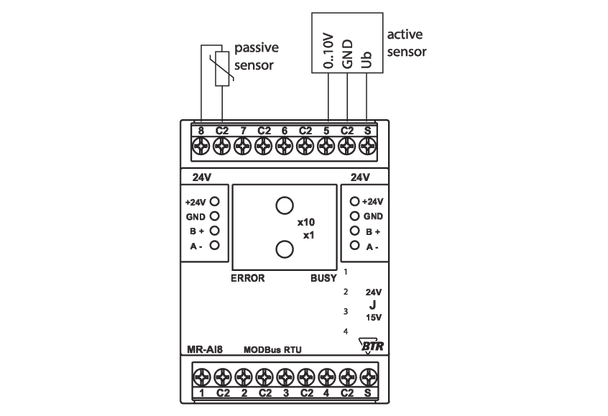

The Modbus module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks. It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc. The inputs can be configured universally by means of standard registers via a Modbus master. Module address, bit rate and parity are set with two rotary switches on the front or by software. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with spring clamp terminal blocks (push-in)
Resources
Specifications
General Data | Protocol | Modbus RTU |
| Address range | 00 to 99 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 1200 to 115200 bit/s |
| Operating voltage | 24 V AC/DC +/- 10 % (SELV) |
| Current consumption | 65 mA (AC) / 25 mA (DC) |
| Relative duty cycle | 100 % |
| Inputs | 8 x individually configurable |
| Input / resistance | 40 Ohm to 4 MOhm |
| Input / voltage | 0 V to 10 V DC |
| Input / resolution | 15 bit |
| Input / error voltage input | 10 mV |
| Input / error resistance input < 12 kOhm | 0.1 % |
| Input / error resistance input >= 12 kOhm | 1 % |
| Display | Green and red LED |
| Dimensions (W x H x D) | 50 x 69.3 x 60 mm |
| Weight | 104 g |
| Operating temperature range | -5 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
