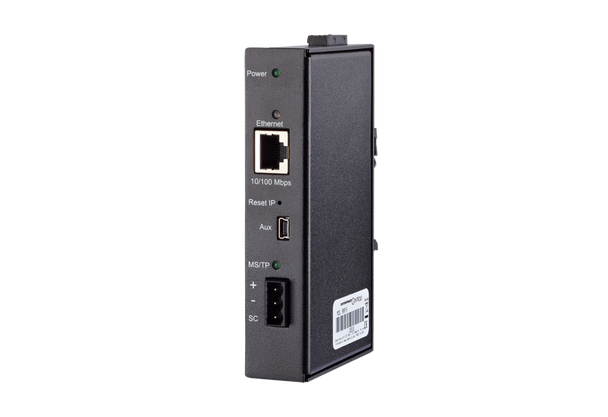

The BACnet IP / BACnet MS/TP Router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP - thereby allowing the system integrator to mix BACnet network technologies within a single BACnet internetwork. One 10/100 Mbps Ethernet port and an MS/TP port are used as communication interface to the respective BACnet networks. An integrated web server allows the configuration, status monitoring, and troubleshooting.
Resources
Specifications

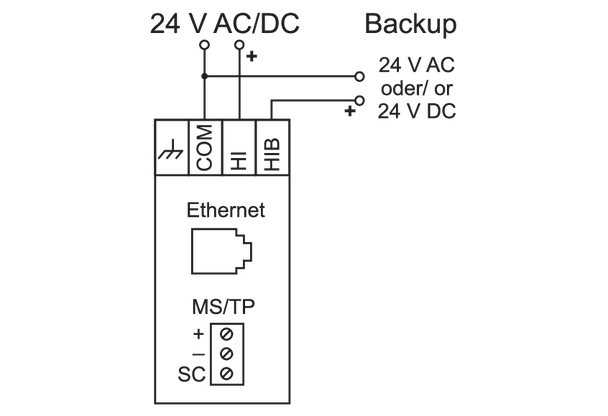

General Data | Operating voltage | 24 V AC/DC +/- 10 % |
| Power consumption | 4 VA (AC) or 2 W (DC) |
| Ethernet communications | IEEE 802.3, 10/100 Mbps,10BASE-T, 100BASE-TX |
| MS/TP communications | ANSI/ASHRAE 135,ISO16484-5, EIA/TIA 4859600, 19200, 38400 and76800 bit/s |
| Display | |
| Power | LED, green |
| Ethernet | 100 Mbps = LED, green10 Mbps = LED, yellowActivity = LED, flashing |
| MS/TP | Activity = LED, green flashing |
| Mounting | TH35 acc. IEC60715 |
| Weight | 220g |
| Operating temperature range | 0 °C to +60 °C |
| Storage temperature range | -40 °C to +85 °C |
| Relative humidity | 10 to 95%, non condensing |
| Ingress protection | IP30 |
