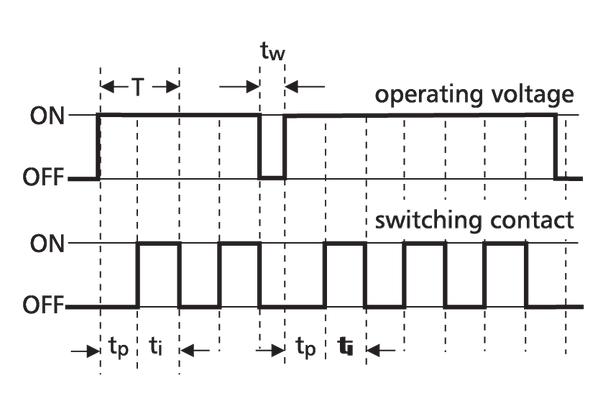

Clock generator with separately adjustable delay and pulse times. The time ranges can be programmed by means of the coding switches incorporated in the front.

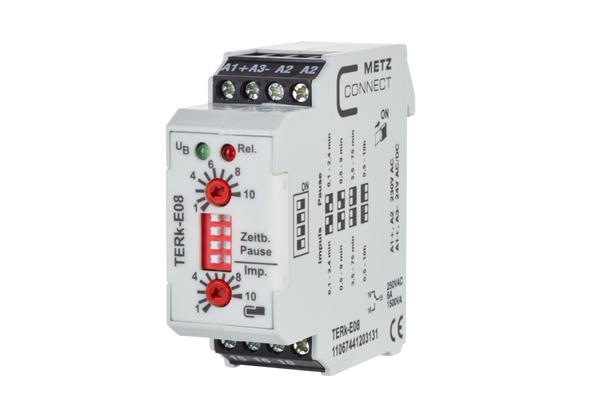

| TERk-E08, 230 V AC, 24 V AC/DC tp 0,1 min-10h, ti 0,1 min-10 h | 11067441203131 | View DataSheet |
|---|
| Operating voltage | 230 V AC / 24 V AC/DC |
|---|---|

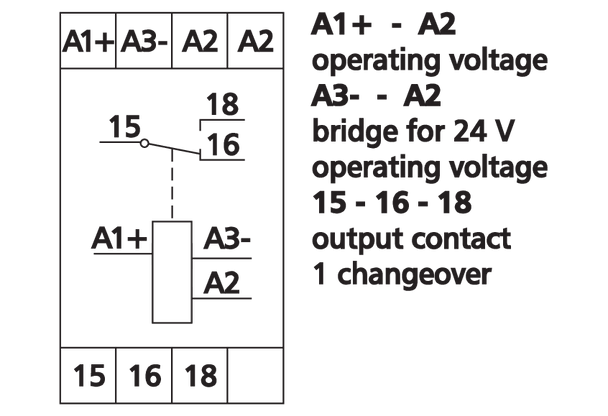

| Output / contact | 1 x changeover contact (SPDT) |
| Output / contact material | AgSnO2 |
| Output / switching voltage | 250 V AC |
| Output / continuous current | 6 A |
| Output / switching frequency | 1200 cycles/h |
| Recovery time | greater than 50 ms |
| Mechanical endurance | 3 x 107 |
| Electrical endurance | 1 x 105 |
| Display | Green and red LED |
| Dimensions (W x H x D) | 22.5 x 61.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | -10 °C to 55 °C |
| Storage temperature range | -25 °C to 70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
