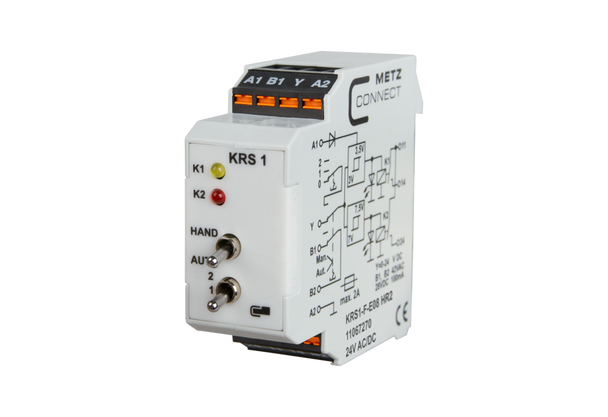

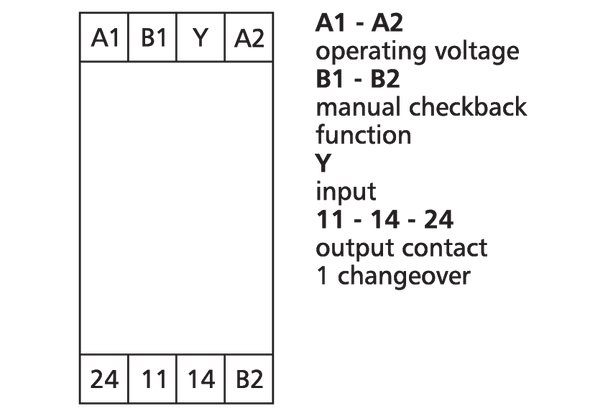

The threshold gate switches units, pumps, fans, burners, etc. As soon as the input voltage reaches the switching threshold, the relay is activated. When the input voltage falls below the switch-off threshold, the relay is released again. The module is designed for a two-level control by means of an analog 0 to 10 V DC control signal.
- Connection with spring clamp terminal blocks (push-in)
- Control signal 0 V DC = No level is active (OFF)
- Control signal 5 V DC = Level 1 active
- Control signal 10 V DC = Level 1 and Level 2 active
- with manual control level
Resources
Specifications
General Data | Operating voltage | 24 V AC/DC |
| Current consumption 24 V AC | 100 mA |
| Current consumption 24 V DC | 35 mA |
| Output / voltage | 250 V AC |
| Output / contact | 2 levels with 0 position |
| Output / contact material | AgSnO2 |
| Output / continuous current | 4 A |
| Output / switching frequency | 1200 cycles/h |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | Yellow and red LED |
| Dimensions (W x H x D) | 22.5 x 61.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | -10 °C to 50 °C |
| Storage temperature range | -25 °C to 70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
