Description

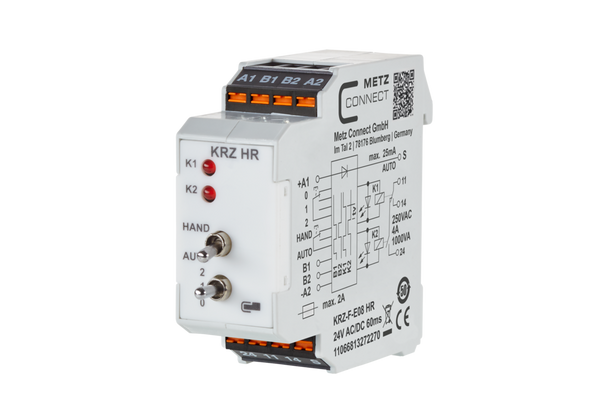

The coupling module is designed for two-level motor control.
- Connection with spring clamp terminal blocks (push-in)
- Interlocked relays
- Manual control level
Resources
| KRZ-F-E08 HR 24 V AC/DC | 11066813272270 | View DataSheet |
|---|
The coupling module is designed for two-level motor control.
| KRZ-F-E08 HR 24 V AC/DC | 11066813272270 | View DataSheet |
|---|
| Operating voltage | 24 V AC/DC |
|---|---|
| Power consumption 24 V AC/DC | 30 mA |
| Output / contacts | 1 changeover contact (SPDT) |
| Output / contact material | AgSnO2 |
| Output / switching voltage | 250 V AC |
| Output / continuous current | 4 A |
| Output / switch-on current | 6 A |
| Output / switching frequency | 1200 cycles/h |
| Response time | 20 ms |
| Release time AC/DC | 20 ms |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | 2 red LEDs |
| Dimensions (W x H x D) | 22.5 x 61.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | -20 °C to 55 °C |
| Storage temperature range | -25 °C to 70 °C |
| Ingress protection for housing / terminal block |
