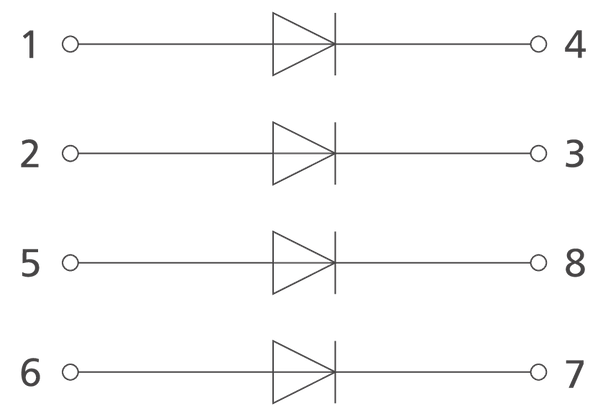

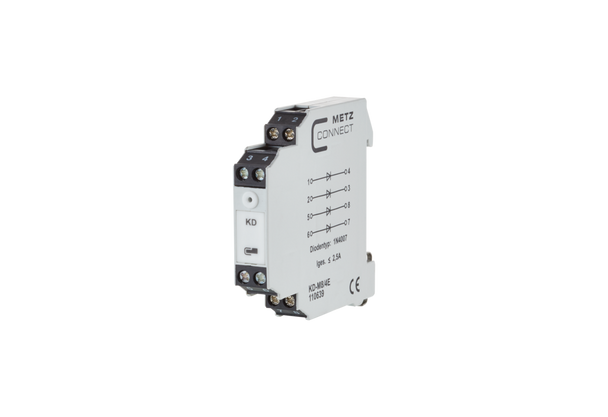

The diode module is equipped with 4 individual diodes. The modules are used for inverse-polarity protection, decoupling and arc extinction.
- individual circuit

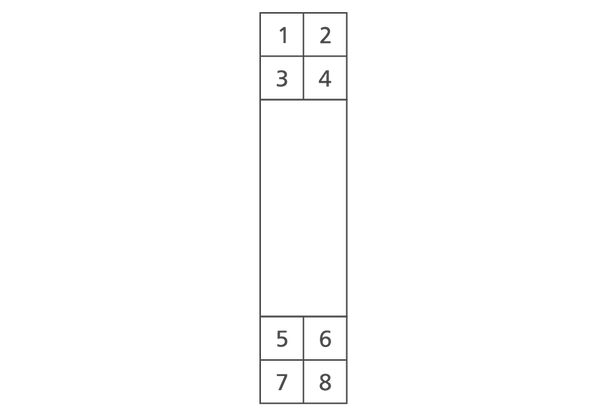

- Connection with screw-type terminals
Resources
Specifications
General Data | Cut-off voltage | 1000 V |
| Input / voltage | 250 V AC/DC |
| Forward current | 1 A |
| Forward voltage | 1.1 V at 1 A |
| Total current through all diodes | less than or equal to 1.8 A |
| Cut-off current | 30 µA at 75 °C |
| Dimensions (W x H x D) | 11.2 x 61.3 x 60 mm |
| Weight | 30 g |
| Operating temperature range | -10 °C to +50 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
