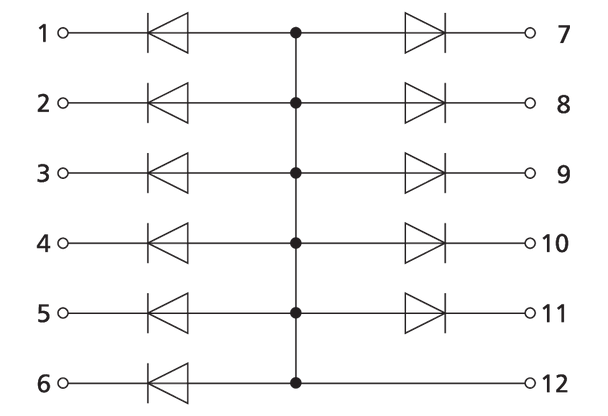

The diode module is equipped with 11 diodes. The anodes of the diodes are all connected to each other. The module is used for failure indication systems (lamp tests).
| KD-S12/11A | 110628 | View DataSheet |
|---|
| Cut-off voltage | 1000 V |
|---|---|
| Input / voltage | 250 V AC/DC |
| Forward current | 1 A |
| Forward voltage | 1.1 V at 1 A |
| Total current through all diodes | less than or equal to 3.2 A |
| Cut-off current | 30 µA at 75 °C |
| Dimensions (W x H x D) | 22.5 x 75 x 95 mm |
| Weight | 20 g |
| Operating temperature range | -10 °C to +50 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
