Coupling devices are used to secure electrical isolation between logic and load.

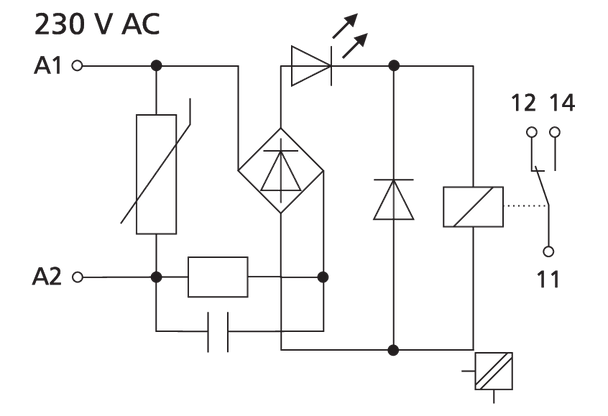

| KRA-M6/21, 1 changeover contact, 230 V AC | 11061505 | View DataSheet |
|---|
| Operating voltage | 230 V AC |
|---|---|
| Current consumption | 5 mA |

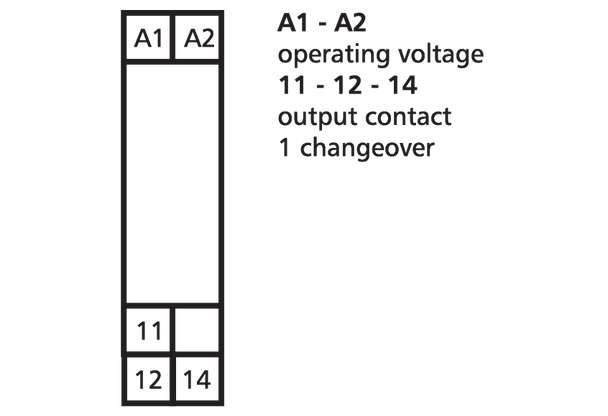

| Output / contacts | 1 changeover contact (1 SPDT) |
| Output / contact material | AgSnO2 |
| Output / switching voltage | 250 V AC/DC |
| Output / continuous current | 6 A |
| Output / switch-on current | 8 A |
| Output / switching frequency | 600 cycles/h |
| Response time | 10 ms |
| Release time | 5 ms |
| Mechanical endurance | 2 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2.5 mm2 |
| Display | Red LED |
| Dimensions (W x H x D) | 11.2 x 61.3 x 60 mm |
| Weight | 45 g |
| Operating temperature range | -20 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
