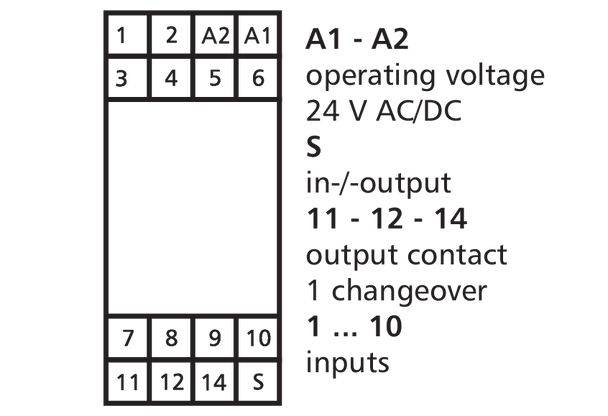

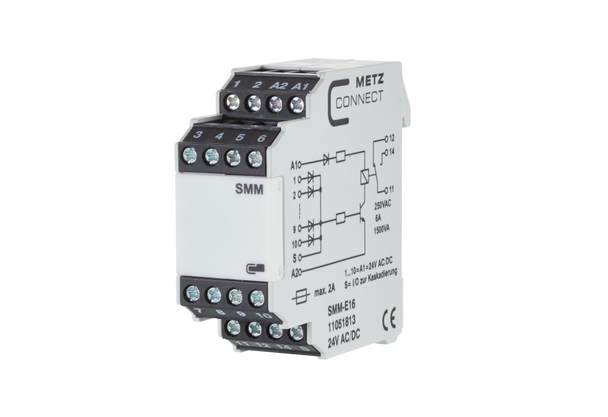

The annunciator module can indicate to 10 incoming messages by means of a relay. The relay is activated as soon as a voltage is applied to min. one of the 10 inputs. The supply voltage has to be applied continuously to the terminals L1 - N. Several modules with the same voltage can be grouped over the input/output S. As soon as one relay of the modules is activated, all other relays of the modules operated in parallel are activated.
- Cascade connection of the devices possible
- 10 signal inputs
- Connection with screw-type terminals
Resources
Specifications
General Data | Operating voltage | 24 V AC/DC |
| Power consumption | 20 mA |
| Output / contact | 1 changeover contact (SPDT) |
| Output / contact material | AgSnO2 |
| Output / switching voltage | 250 V |
| Output / continuous current | 6 A |
| Output / switching frequency | 1200 cycles/h |
| Response time | 10 ms |
| Release time | 5 ms |
| Mechanical endurance | 1 x 107 |
| Electrical endurance | 1 x 105 |
| Cross-section | 2.5 mm2 |
| Dimensions (W x H x D) | 22.5 x 61.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | -10 °C to 55 °C |
| Storage temperature range | -25 °C to 70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
