Metz Connect 11051310. RM3-1W 24 V AC

No reviews yet Write a Review
$0.00
Metz Connect 11051310 RM3-1W 24 V AC | American Cable Assemblies
Metz Connect 11051310. RM3-1W 24 V AC
Metz Connect 11051310. RM3-1W 24 V AC
Metz Connect 11051310. RM3-1W 24 V AC
SKU:
MTZ11051310
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Operating voltage:
24 V AC
Continuous current:
16 A
Contacts:
1 changeover contact
Relay socket:
3-storied
RoHS:
compliant
EAN:
4251394625638

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

Relay module for large loads such as lamp loads, motors and drives for electrical isolation between logic and load.

  • Connection with screw-type terminals
  • Socket 3 storeys
  • Pluggable relay
  • With labeling field, socket, bracket and LED-module
  • Variants: 24 V AC or 230 V AC

Resources

RM3-1W 24 V AC | 11051310View DataSheet
RM3-1W 24 V AC | 11051310View Product Information

Specifications

General Data
Operating voltage AC 24 V or 230 V AC
Current consumption 24 V AC 69 mA
Current consumption 230 V AC 7 mA
Output / contacts 1 changeover contact
Output / contact material AgNi 90/10
Output / switching voltage 250 V AC
Output / continuous current 16 A *
Output / switch-on current 30 A
Output / switching frequency 360 cycles/h
Mechanical endurance 10 x 106 switching cycles
Electrical endurance 1 x 105 switching cycles
Cross-section 2 x 2.5 mm2
Display Red LED
Dimensions (W x H x D) 15.5 x 75 x 65 mm
Weight 95 g
Operating temperature range -20 °C to 55 °C
Storage temperature range -25 °C to 70 °C

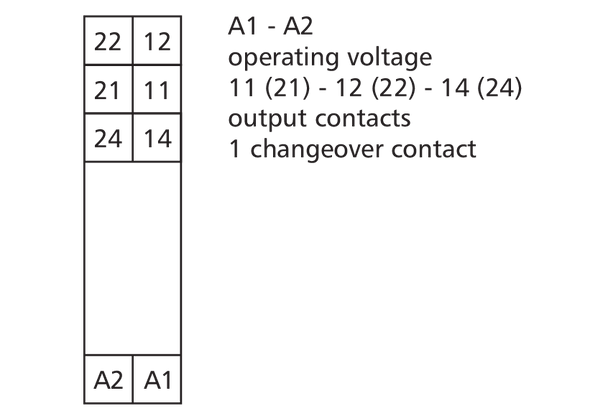

* Note For currents higher than 12 A (16 A), terminals 11-21, 12-22 and 14-24 on the socket must be bridged to distribute the current to both contact paths.
