Relay module for large loads such as lamp loads, motors and drives for electrical isolation between logic and load.
| RM21 230 V AC | 11051105 | View DataSheet |
|---|---|
| RM21 230 V AC | 11051105 | View Product Information |
| Operating voltage AC | 24 V or 230 V AC |
|---|---|
| Current consumption 24 V AC | 69 mA |
| Current consumption 230 V AC | 7 mA |
| Output / contacts | 1 changeover contact |
| Output / contact material | AgNi 90/10 |
| Output / switching voltage | 250 V AC |
| Output / continuous current | 16 A * |
| Output / switch-on current | 30 A |
| Output / switching frequency | 360 cycles/h |
| Mechanical endurance | 10 x 106 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2 x 2.5 mm2 |
| Display | Red LED |

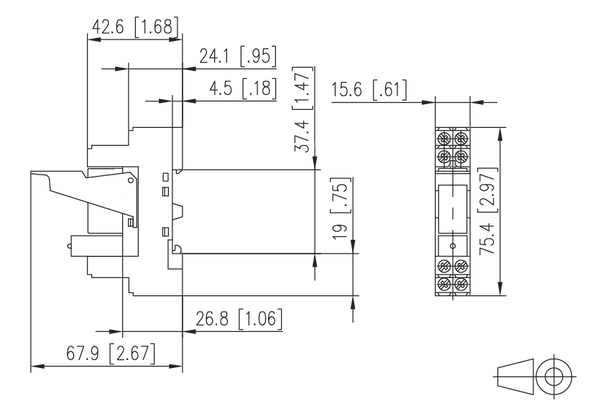

| Dimensions (W x H x D) | 15.5 x 75 x 65 mm |
| Weight | 95 g |
| Operating temperature range | -20 °C to 55 °C |
| Storage temperature range | -25 °C to 70 °C |
| * Note | For currents higher than 12 A (16 A), terminals 11-21, 12-22 and 14-24 on the socket must be bridged to distribute the current to both contact paths. |
