Relay module for electrical isolation between logic and load.
- Connection with screw-type terminals
- pluggable relay
- with labeling field
Resources
Specifications
General Data | Operating voltage AC | 24 V or 230 V AC |
| Current consumption 24 V AC | 32 mA |
| Current consumption 230 V AC | 3.3 mA |

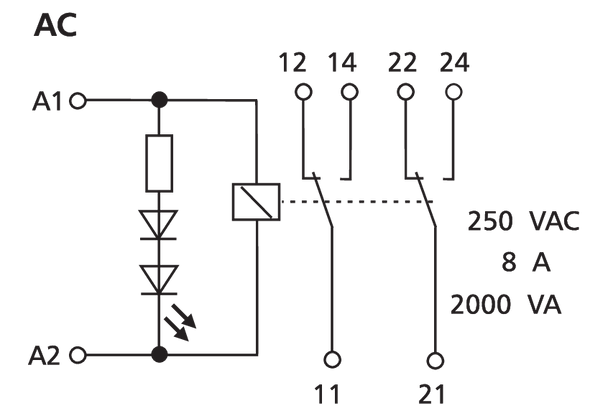

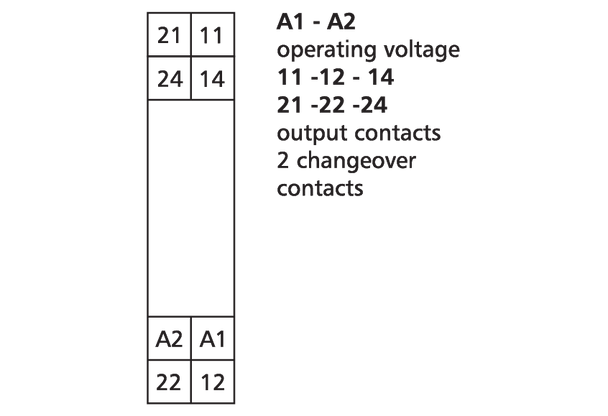

| Output / contacts | 2 changeover contacts (DPDT) |
| Output / contact material | AgNi 90/10 |
| Output / switching voltage | 250 V AC |
| Output / continuous current | 8 A |
| Output / switching frequency | 360 cycles/h |
| Mechanical endurance | 5 x 106 switching cycles |
| Electrical endurance | 1 x 106 switching cycles |
| Cross-section | 2 x 2.5 mm2 |
| Display | Red LED |

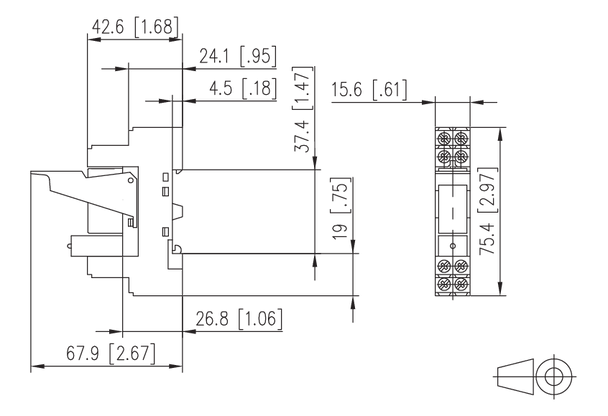

| Dimensions (W x H x D) | 15.5 x 75 x 65 mm |
| Weight | 95 g |
| Operating temperature range | -20 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
