Multi-functional timer relay with incorporated coding switches to set functions. The time is set by means of a linear potentiometer on a relative scale.
- Four adjustable time ranges for each device
- 0.1 min to 10 h
- Six selectable functions
- 1. On-delayed
- 2. Making-pulse interval
- 3. Off-delay
- 4. Breaking-pulse interval
- 5. Flashing for pause start

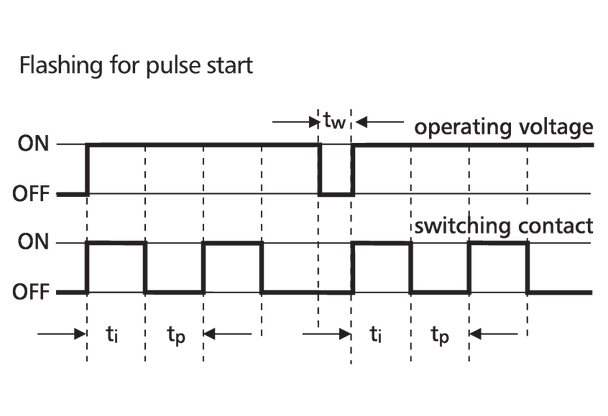

- 6. Flashing for pulse start
Resources
| MFRk-E12, 230 V AC / 24 V AC/DC, 0,1 min-10 h | 110310412231 | View DataSheet |
|---|
Specifications
General Data | Operating voltage | 230 V AC / 24 V AC/DC |
| Output / contact | 2 changeover contacts (DPDT) |
| Output / contact material | AgNi |
| Output / switching voltage | 250 V |
| Output / continuous current | 6 A |
| Output / switching frequency | 1200 cycles/h |
| Mechanical endurance | 3 x 107 switching cycles |
| Electrical endurance | 2 x 105 switching cycles |
| Recovery time | greater than or equal to 250 ms |
| Cross-section | 2.5 mm2 |
| Display | Green and red LED |
| Dimensions (W x H x D) | 22.5 x 75 x 95 mm |
| Weight | 150 g |
| Operating temperature range | -10 °C to 55 °C |
| Storage temperature range | -25 °C to 70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
