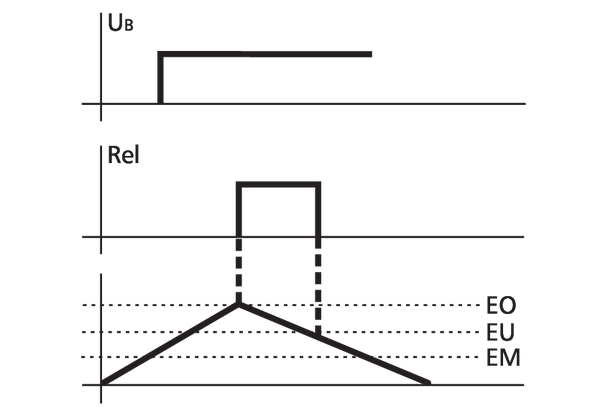

The level sensor monitors filling levels or leakage of all conductive, noncombustible media. The trigger can be adjusted by means of a proportional potentiometer. As monitor, the device works with an electrode (EO) and the ground connection (EM), e.g. for minimum and maximum levels, to protect submersible pumps from overflowing or running dry. If the surface of the fluid is subject to disturbance, we recommend another electrode (EU). As two-level controller, the device controls pumps or valves for automatically filling and emptying containers by means of the EO and EU electrodes and the EM ground connection. A container wall, being conductive to the medium, can also be used as ground connection. With 2 electrodes connected the contacts B2 and B3 must be connected with a bridge! Variant: 24 V AC
Resources
Specifications
General Data | Operating voltage | 24 V AC |
| Response sensitivity | 5 to 50 kOhm, adjustable |
| Input | up to 3 electrodes |
| Input / electrode voltage | 12 V |
| Output / contact | 2 changeover contacts (DPDT) |
| Output / switching voltage | 250 V |
| Output / continuous current | 6 A |
| Output / total current | 8 A / across all contacts |
| Mechanical endurance | 1 x 107 |
| Electrical endurance | 1 x 105 |
| Switching frequency | 600 cycles/h |
| Display | Green LED |
| Dimensions (W x H x D) | 22.5 x 75 x 95 mm |
| Weight | 300 g |
| Operating temperature range | 0 °C to 55 °C |
| Storage temperature range | -20 °C to 70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
