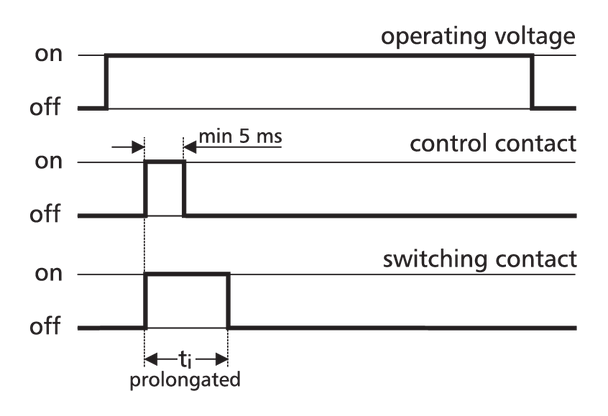

The timer relay is used for pulse prolongation. When the control contact is closed min. 5 ms, the relay is activated and releases after the adjusted pulse time has lapsed. Further control pulses during the pulse time do not have any effect.

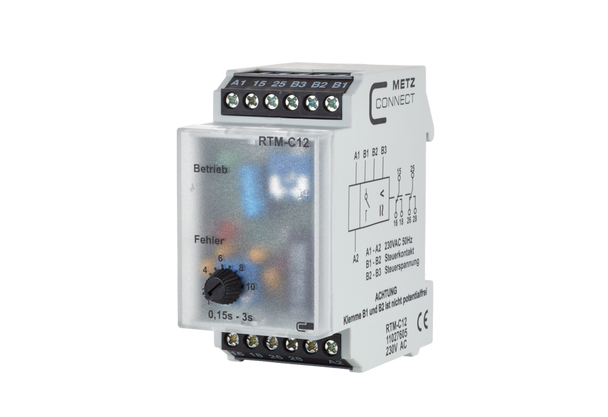

| RTM-C12, 230 V AC | 11027605 | View DataSheet |
|---|
| Operating voltage | 230 V AC |
|---|---|
| Current consumption max. | less than or equal to 15 mA |
| Continuous current max. | 8 A |

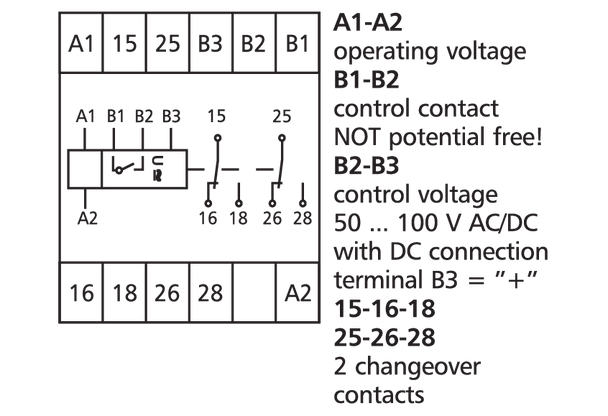

| Output / contact | 2 changeover contacts (DPDT) |
| Output / contact material | AgNi 90/10 gold plated |
| Response time typical | 20 ms |
| Release time typical | 20 ms |
| Recovery time | greater than or equal to 20 ms |
| Minimum switch-on duration | greater than or equal to 5 ms |
| Mechanical endurance | 3 x 107 |
| Electrical endurance | 1 x 105 |
| Wire cross section solid wire | 2.5 mm² / AWG 14 |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 160 g |
| Operating temperature range | -10 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
