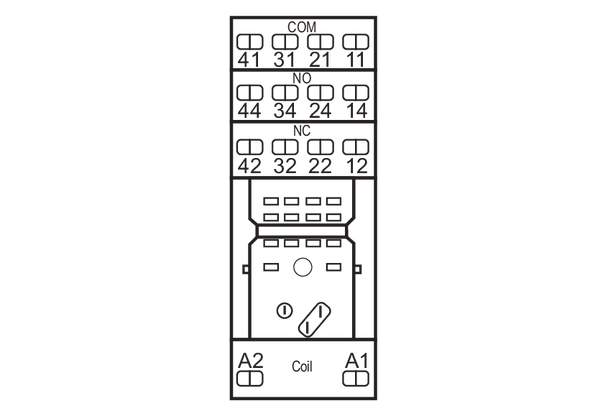

14-pole relay socket with spring-loaded terminals for commercially available industrial relays. All metal parts are arranged under cover to protect them against contact. The relay socket matches to industrial relay MC274. Electronic modules, such as LED or RC modules, can be plugged in the socket optionally.
- Optional bracket
- integrated quick fastening for DIN rail
- Terminal designation to EN 50022
- separate input and output
Resources
Specifications
General Data | Nominal current | 10 A |
| Nominal voltage | 300 V AC |
| Electric strength | |
| Coil / contact | 2500 V |
| Isolation group | VDE 0110b C250 |
| Protection against contact | VBG 4 |
| Solid wire | 2 x 0.2 - 1.5 mm2 |
| Stranded wire with end sleeve | 2 x 0.2 - 1.5 mm2 |
| Insulation strip length | 7 mm |
| Pulling force (contact) | at least 35 N |
| Housing dimensions (W x H x D) | 31 x x 42.65 mm |
| Weight | 88 g |
| Operating temperature range | 0 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection | IP20 |
