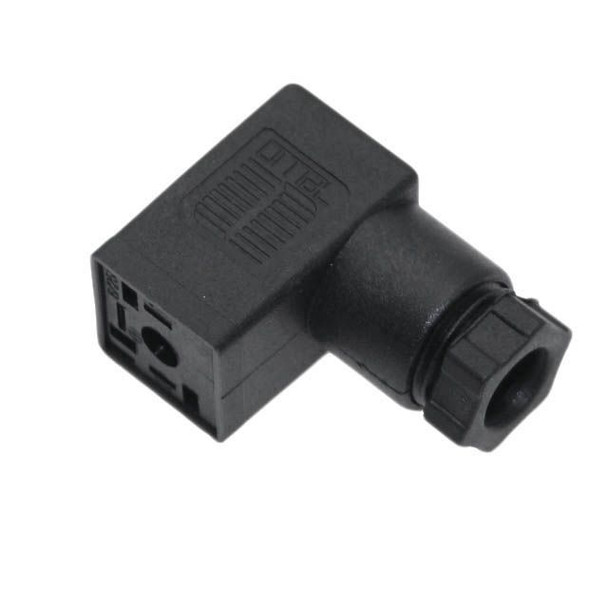

The Industry Standard Form C (9.4mm) solenoid valve connectors from Mencom are designed to provide easy and reliable quick disconnect options for many valve applications. The universal design allows for worry free installation whether a new application or maintenance and repair. These quality solenoid valve connectors are available in field wireable models, over molded versions with different cable lengths, and with quick disconnect receptacles or plugs. Mencom also offers connectors with a wide range of circuitry, including MOVs, Flyback Diodes, and Braided Rectifiers.
Resources
Product Specifications
| Product Type | Solenoid Valve Connectors |
| Component Type | Field Wireable |
| Mencom Series | ISC 9.4mm |
| Pin Count | 4 |
| Gender | Female |
| Orientation Head 1 | Female Right Angle |
| Coupling Thread Gender1 | ISC 9.4mm |
| Orientation Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Circuit | N/A |
| Wire Gauge | N/A |
| Upper AWG | 18 |
| Lower AWG | 24 |
| Voltage Rating | 250 |
| Amperage Rating | 6 |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Cable O.D. | N/A |
| Cable O.D. Range | PG07 6-7mm |
| Color Code | DIN 43650 |
| Cable Jacket Material | N/A |
| Jacket Color | N/A |
| Mounting Thread | PG-07 |
| Shell / Coupling Nut Material | N/A |
| Ground Wire | No |
| IP Rating | IP65 |
| Weight (lbs.) | 0.020000 |
