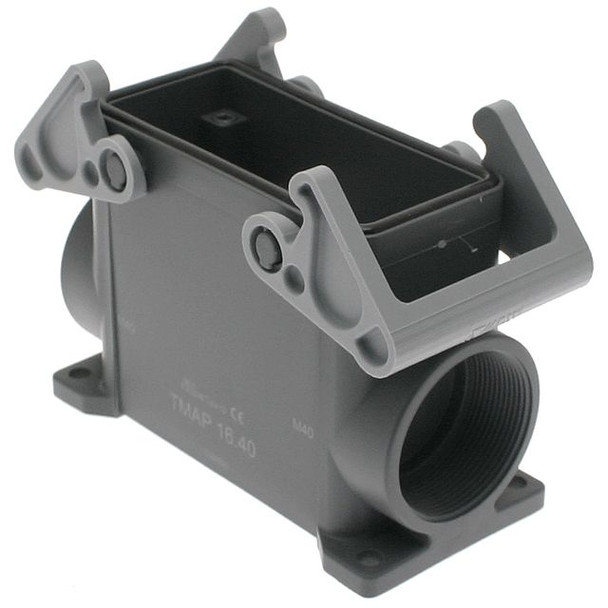

ILME is a globally recognized leader in the heavy duty industrial connector industry. The T-Type thermoplastic (Hoods/Bases) provide an exceptionally high quality yet low cost alternative to traditional metal housings. They are structurally solid, mechanically robust, and resistant to many chemical agents, making them ideal for use in the harshest of environments.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | T |
| Component Type | Base |
| Housing/Insert Type | T-Type |
| Lever Type | Double Latch |
| Hood Entry | Side |
| Hood Thread | M32 |
| Enclosure Dimension | 104.27 |
| Number of Entries | 1 |
| Gasket/O-Ring | Yes |
| Insert Dimension | 104.27 |
| Gender | Male |
| Mounting Style | Surface Mount |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Enclosure Material | Plastic |
| Temperature Range in Degrees Celsius | -40 C to +90 C |
| IP Rating | IP65 |
| Weight (lbs.) | 0.450000 |
486.pdf
