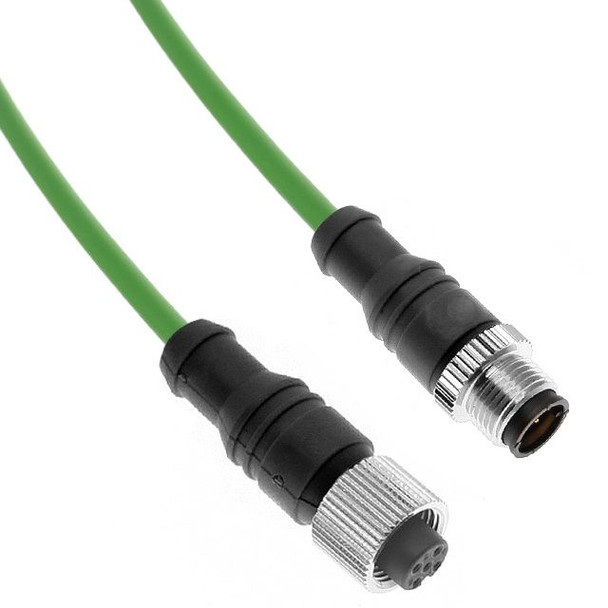

Profinet is an open standard for industrial networking in automation. It connects devices, systems, and cells, and provides more flexibility, efficiency and performance. Mencom M12 D-Coded Profinet connectors offer fast, reliable, flexible and high quality connectivity solutions. The secure and fast data exchange will provide a sustainable and significant increase in productivity.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | Profinet |
| Pin Count | 4 |
| Gender | Male/Female Extension |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | M12 D-Code |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | Female Straight |
| Mating Thread / Type Head 2 | M12 D-Code |
| Coupling Thread Gender2 | Feamle |
| Wire Gauge | 22 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 30 |
| Amperage Rating | 4 |
| Cable Length in meters | 5 |
| Cable Length in feet | 15 |
| Cable O.D. | 0.26 |
| Color Code | Profinet |
| Cable Jacket Material | PVC |
| Jacket Color | Green |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | Yes |
| Ground Wire | No |
| IP Rating | IP69 |
| Weight (lbs.) | 0.736000 |
PND45-4MFPS-ZZ.PDF
