Mencom offers a variety of Profibus DP molded cordsets, field wired connectors, receptacles, and accessories to provide quick plug and play set up of your devices. The Profibus DP cordsets use a similar M12 coupling nut and single reverse keyway as the MEC product, but is manufactured with the Profibus DP specified cable.
Resources

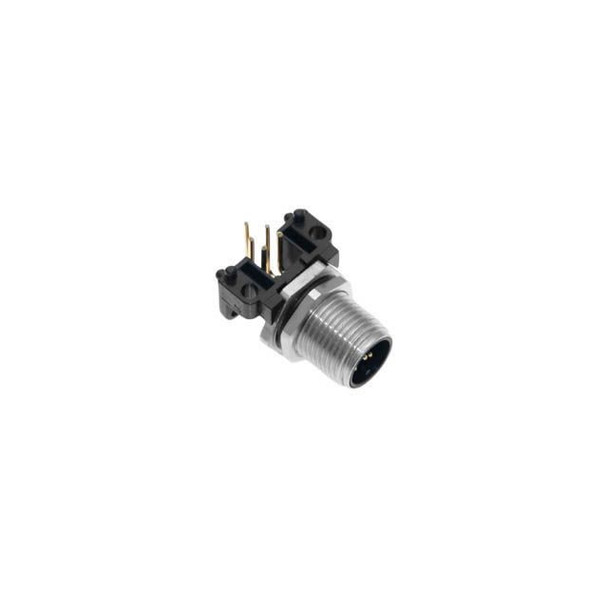

Product Specifications
| Product Type | Network Connectors |
| Component Type | Receptacle |
| Mencom Series | Profibus DP |
| Pin Count | 5 |
| Gender | Male |
| Orientation Head 1 | Male Right Angle |
| Mating Thread / Type Head 1 | M12 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | N/A |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 150 |
| Amperage Rating | 4 |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Color Code | N/A |
| Cable Jacket Material | N/A |
| Jacket Color | N/A |
| Mounting Thread | M12 |
| Mounting Style | Front Mount |
| Nut | Yes |
| Termination | PCB |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | Yes |
| Ground Wire | No |
| IP Rating | IP69 |
| Weight (lbs.) | 0.030000 |
