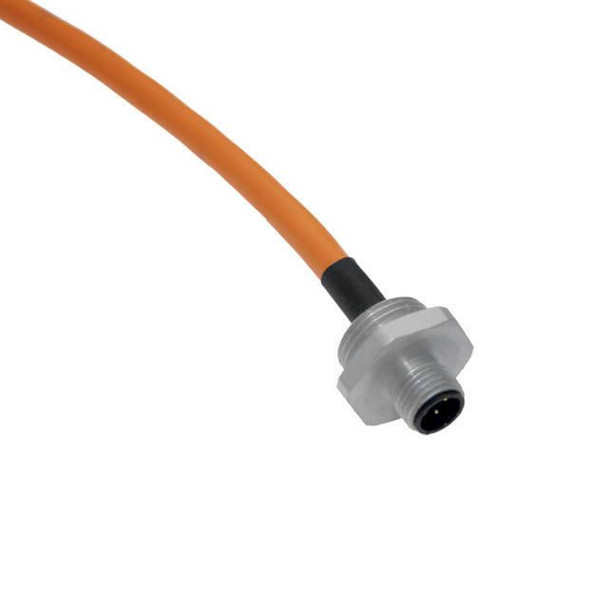

Mencom offers a variety of Profibus PA molded cordsets, field wired connectors, receptacles, and accessories to provide quick plug and play set up of your devices. Like the Foundation Fieldbus product, Profibus PA is offered with the MIN Size I (7/8 in) and the MDC (M12) over molded cordsets and receptacles. With Stainless Steel coupling nuts, and Profibus PA specified cable, these items are designed specifically for Process Automaton, and perform exceptionally well in rugged environments.
Resources
Product Specifications
| Product Type | Network Connectors |
| Component Type | Receptacle |
| Mencom Series | Profibus PA |
| Pin Count | 4 |
| Gender | Male |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | M12 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 18 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 300 |
| Amperage Rating | 4 |
| Cable Length in meters | 2 |
| Cable Length in feet | 6 |
| Cable O.D. | 0.28 |
| Color Code | Profibus PA |
| Cable Jacket Material | PVC |
| Jacket Color | Orange |
| Mounting Thread | M20 |
| Mounting Style | Front Mount |
| Nut | Yes |
| Termination | Cable |
| Shell / Coupling Nut Material | Stainless Steel |
| Shielding | Yes |
| Ground Wire | No |
| IP Rating | IP69 |
| Weight (lbs.) | 0.110000 |
