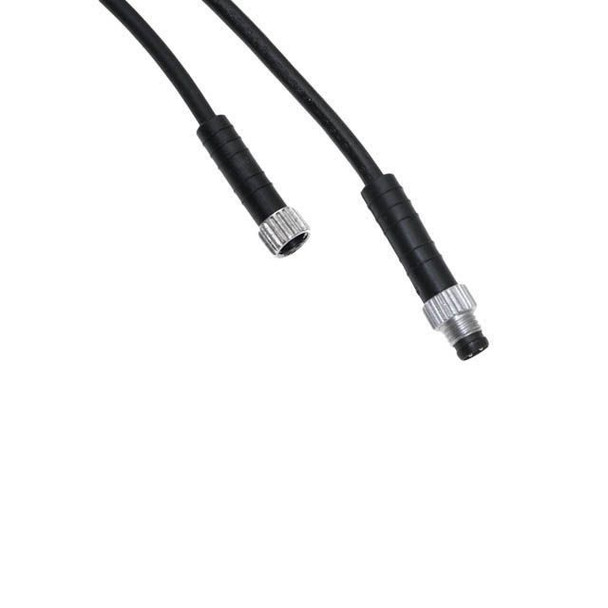

NAN, also called M8 connectors, provide easy plug and play connectivity in small places for 3, 4, and 6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles for both thread style and snap style with choices of cable jackets and connector ends to meet your specific requirements.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | NAN |
| Connection Style | Thread-On |
| Pin Count | 6 |
| Gender | Male/Female Extension |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | M8 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | Female Straight |
| Mating Thread / Type Head 2 | M8 |
| Coupling Thread Gender2 | Female |
| Wire Gauge | 24 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 60 |
| Amperage Rating | 3 |
| Cable Length in meters | 1 |
| Cable Length in feet | 3 |
| Cable O.D. | 0.18 |
| Color Code | DC |
| Cable Jacket Material | PVC |
| Jacket Color | Black |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | N/A |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | N/A |
| Ground Wire | No |
| IP Rating | IP67 |
| Weight (lbs.) | 0.150000 |
