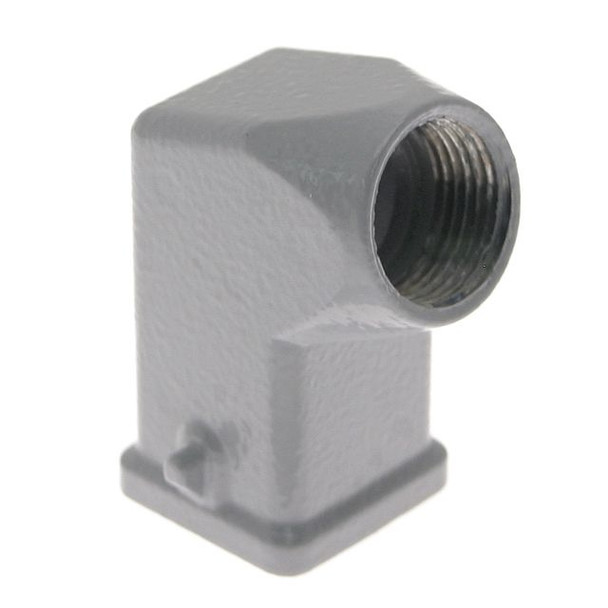

ILME is a globally recognized leader in the heavy duty industrial connector industry. The standard MK series of aluminum die cast enclosures (Hoods/Bases) provide a cost effective solution that provides consistent clamping force and IP65 protection even after 500 mating cycles. Hoods and surface mount bases come with a wide range of PG, Metric, or NPT openings to meet your specific application.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CK |
| Component Type | Hood |
| Housing/Insert Type | Standard |
| Pegs | 2 Pegs |
| Hood Entry | Side |
| Hood Thread | M20 |
| Enclosure Dimension | 21.21 |
| Number of Entries | 1 |
| Gasket/O-Ring | No |
| Insert Dimension | 21.21 |
| Gender | Male |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Enclosure Material | Metal |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| IP Rating | IP44 |
| Weight (lbs.) | 0.066000 |
