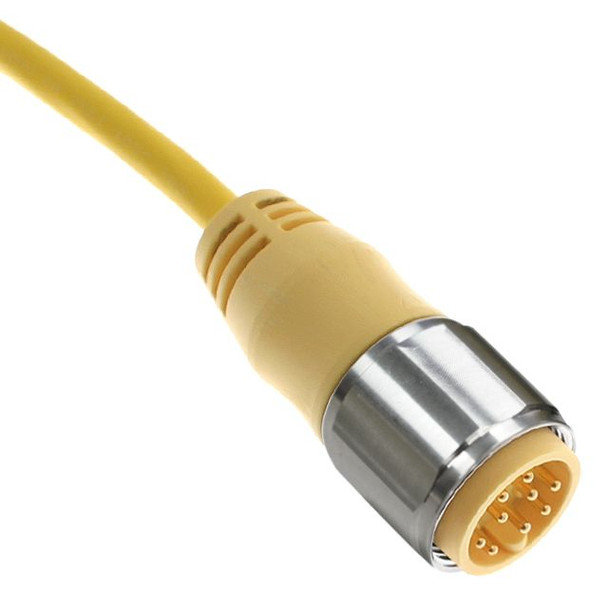

MIN size III (1-1/8") connectors provide easy plug and play connectivity for a wide range of applications that require 9, 10, 12, or 19 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | MIN Size III |
| Pin Count | 9 |
| Home Run Pin Count | 9 |
| Gender | Male |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | 1.125-16UN2 |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 18 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 300 |
| Amperage Rating | 4 |
| Cable Length in meters | 2 |
| Cable Length in feet | 6 |
| Cable O.D. | 0.38 |
| Color Code | North American |
| Cable Jacket Material | PUR |
| Jacket Color | Yellow |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Stainless Steel |
| Shielding | N/A |
| Ground Wire | Yes |
| Gland Upper Range | 0.38 |
| Gland Lower Range | 0.38 |
| IP Rating | IP69 |
| Weight (lbs.) | 0.785700 |
