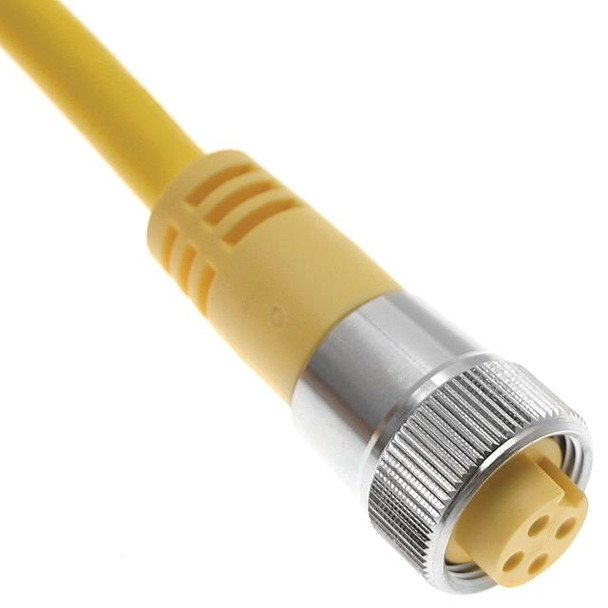

MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | MIN Size I |
| Pin Count | 3 |
| Home Run Pin Count | 3 |
| Gender | Female |
| Orientation Head 1 | Female Straight |
| Mating Thread / Type Head 1 | 7/8-16UN2 |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 16 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 600 |
| Amperage Rating | 13 |
| Cable Length in meters | 1 |
| Cable Length in feet | 3 |
| Cable O.D. | 0.39 |
| Color Code | North American |
| Cable Jacket Material | PVC |
| Jacket Color | Yellow |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | Yes |
| Ground Wire | Yes |
| Gland Upper Range | 0.39 |
| Gland Lower Range | 0.39 |
| IP Rating | IP69 |
| Weight (lbs.) | 1.143813 |
