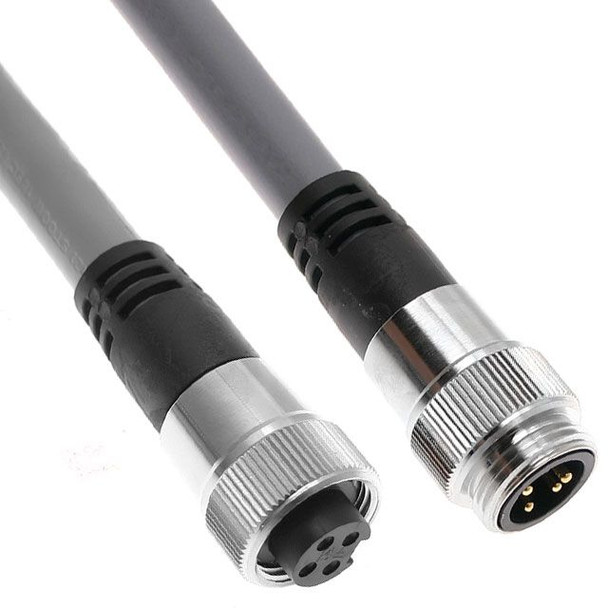

MIN Power connectors provide easy plug and play connectivity for applications up to 18 amps. Mencom offers molded cables and panel mount receptacles with 3, 4, or 7 contacts.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | MIN Power |
| Pin Count | 4 |
| Gender | Male/Female Extension |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | 7/8-16UN2 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | Female Straight |
| Mating Thread / Type Head 2 | 7/8-16UN2 |
| Coupling Thread Gender2 | Female |
| Wire Gauge | 14 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 600 |
| Amperage Rating | 15 |
| Cable Length in meters | 6 |
| Cable Length in feet | 20 |
| Cable O.D. | 0.58 |
| Color Code | North American |
| Cable Jacket Material | PVC |
| Jacket Color | Gray |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Stainless Steel |
| Shielding | N/A |
| Ground Wire | Yes |
| IP Rating | IP69 |
| Weight (lbs.) | 4.162900 |
