Description

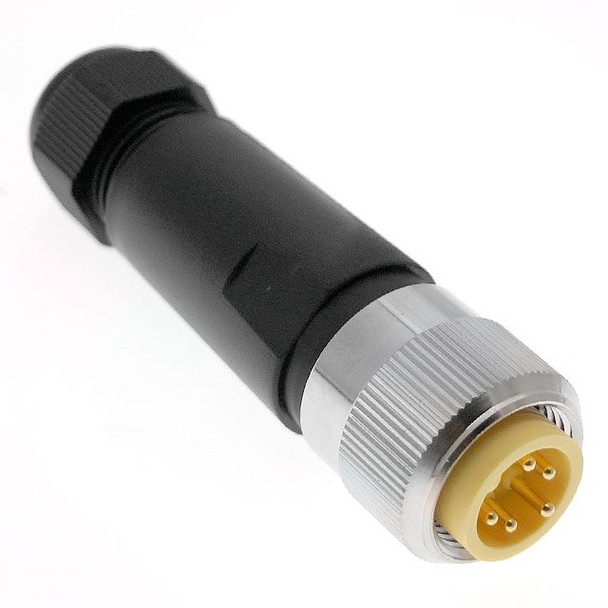

DeviceNet Trunk, sometimes referred to as "Thick Cable" pairs MIN connectors with DeviceNet cabling to allow for easy plug and play connectivity in DeviceNet applications. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles, and DeviceNet accessories to meet your specific requirements.
Resources
| Catalog PDF |  K-8.pdf |
|---|---|
| Product Drawing PDF | MIN-5MP-FW-DN.PDF |
Product Specifications
| Product Type | Network Connectors |
|---|---|
| Component Type | Field Wireable |
| Mencom Series | DeviceNet Trunk |
| Pin Count | 5 |
| Gender | Male |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | 7/8-16UN2 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | N/A |
| Upper AWG | 14 |
| Lower AWG | 22 |
| Voltage Rating | 600 |
| Amperage Rating | 12 |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Cable O.D. | N/A |
| Cable O.D. Range | 8-17mm |
| Color Code | DeviceNet |
| Cable Jacket Material | N/A |
| Jacket Color | N/A |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Black Anodized Aluminum |
| Shielding | No |
| Ground Wire | No |
| Gland Upper Range | 13 |
| Gland Lower Range | 5 |
| IP Rating | IP67 |
| Weight (lbs.) | 0.050000 |
