Description

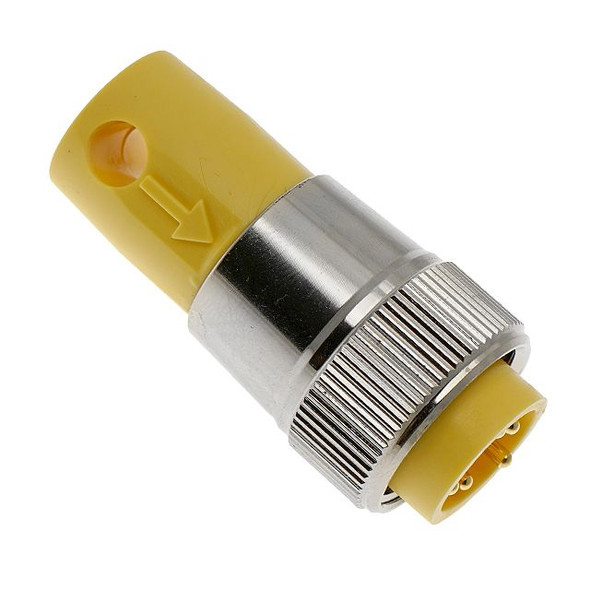

MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.
Resources
| Catalog PDF |  A-37.pdf |
|---|---|
| Product Drawing PDF | MIN-5MP-DP1.PDF |
Product Specifications
| Product Type | Cables |
|---|---|
| Component Type | Accessory |
| Mencom Series | MIN Size I |
| Pin Count | 5 |
| Gender | Female |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | 7/8-16UN2 |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | N/A |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 300 |
| Amperage Rating | 5.5 |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Cable O.D. | N/A |
| Color Code | N/A |
| Cable Jacket Material | N/A |
| Jacket Color | N/A |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Clear Anodized Aluminum |
| Shielding | N/A |
| Ground Wire | No |
| IP Rating | IP69 |
| Weight (lbs.) | 0.100000 |
