Description

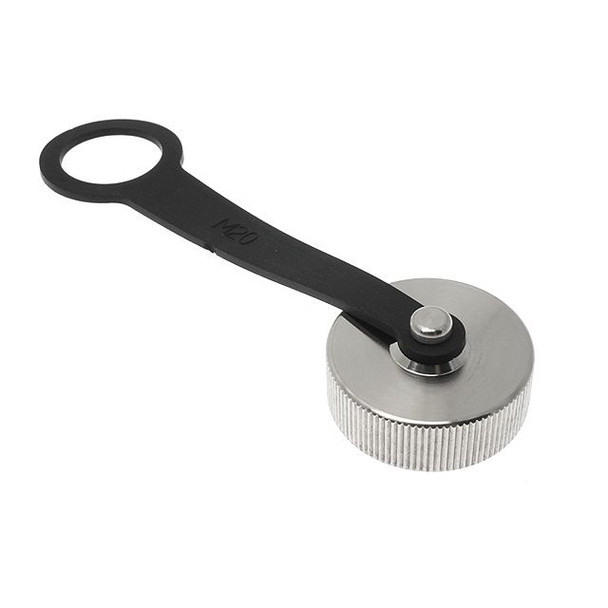

MIN size III (1-1/8") connectors provide easy plug and play connectivity for a wide range of applications that require 9, 10, 12, or 19 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.
Product Specifications
| Product Type | Cables |
|---|---|
| Component Type | Accessory |
| Mencom Series | MIN Size III |
| Pin Count | N/A |
| Gender | Female |
| Orientation Head 1 | N/A |
| Mating Thread / Type Head 1 | 1.125-16UN2 |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | M20 |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | N/A |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | N/A |
| Amperage Rating | N/A |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Cable O.D. | N/A |
| Color Code | N/A |
| Cable Jacket Material | N/A |
| Jacket Color | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Stainless Steel |
| Shielding | N/A |
| Ground Wire | No |
| IP Rating | IP67 |
| Weight (lbs.) | 0.080000 |
