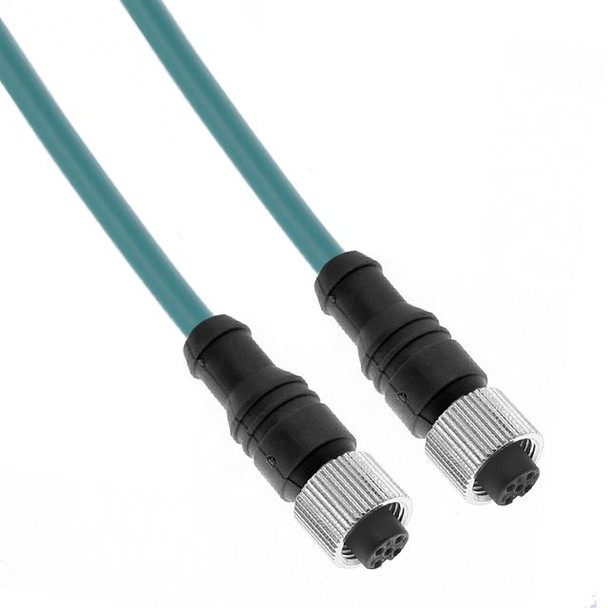

The M-12 D-Coded Ethernet connectors from Mencom are designed to provide reliable, easy to install industrial Ethernet connection in rugged and harsh environments. With PVC, PUR, and Shielded cable options, various lengths, field wireable plugs, and mating receptacles, the product offering covers most industrial applications.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | Ethernet |
| Pin Count | 4 |
| Gender | Female/Female Extension |
| Orientation Head 1 | Female Straight |
| Mating Thread / Type Head 1 | M12 D-Code |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | Female Straight |
| Mating Thread / Type Head 2 | M12 D-Code |
| Coupling Thread Gender2 | Female |
| Wire Gauge | 24 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 300 |
| Amperage Rating | 4 |
| Cable Length in meters | 10 |
| Cable Length in feet | 30 |
| Cable O.D. | 0.24 |
| Color Code | Ethernet |
| Cable Jacket Material | PUR |
| Jacket Color | Teal |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | No |
| Ethernet Cable Standard | CAT5e |
| Ground Wire | No |
| IP Rating | IP69 |
| Weight (lbs.) | 0.840000 |
